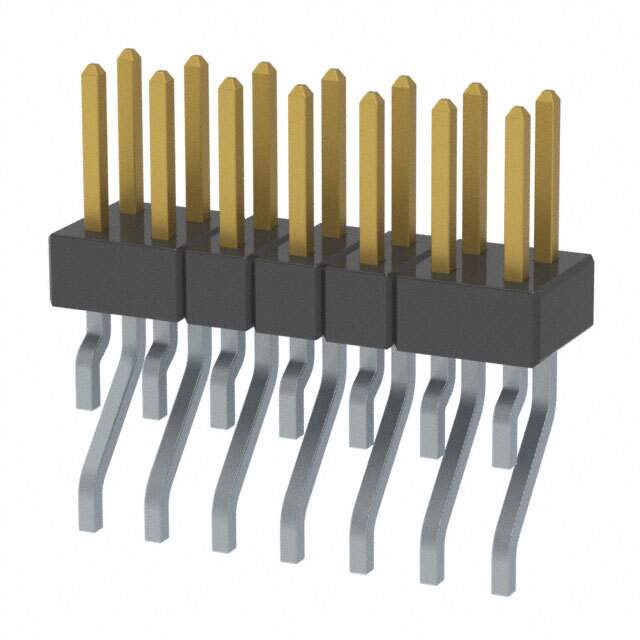

Same model may have multiple batches, images only for reference.

MMT-107-02-L-DH-P

Name: MMT-107-02-L-DH-P
Brand: Samtec Inc.
SKU: 1338419
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMT-107-02-L-DH-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 14POS 2MM / Connector Header Surface Mount, Right Angle 14 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	MMT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.175" (4.45mm)
Insulation Height	0.157" (4.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	MMT-107
Standard Package	40
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1338419-MMT-107-02-L-DH-P
Ultra Librarian 3D Model	Ultra Librarian MMT-107-02-L-DH-P CAD Model

Alternative Products

Description

The 1338419-MMT-107-02-L-DH-P is a male pin header connector designed for use in electronic devices.

Positions: 14
Feature: Pick and Place
Rows: 2
Loaded: All Positions
Mounting Type: Surface Mount, Right-Angle
Package: Tube
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch-Mating: 0.079 inches
Temperature Range: -55°C to 125°C
Current Rating: 3A
