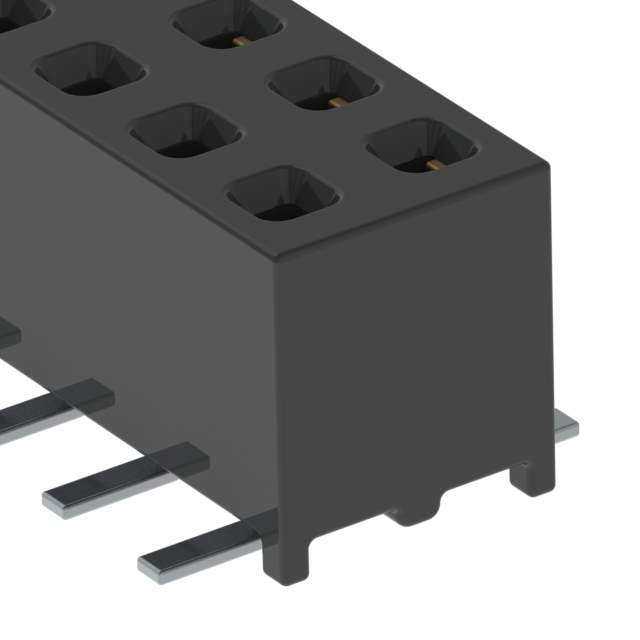

Same model may have multiple batches, images only for reference.

MMS-115-02-L-DV-P

Name: MMS-115-02-L-DV-P
Brand: Samtec Inc.
SKU: 1337366
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMS-115-02-L-DV-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS 0.079 GOLD SMD / 30 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	MMS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	3.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	MMS-115
Standard Package	19
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1337366-MMS-115-02-L-DV-P
Ultra Librarian 3D Model	Ultra Librarian MMS-115-02-L-DV-P CAD Model

Alternative Products

Description

The MMS-115-02-L-DV-P is a 30 position, 2-row rectangular connector designed for use in female sockets.

Positions Loaded: All
Contact Material: Phosphor bronze
Mating Finish Thickness: 10.0μin (0.25μm) Gold
Contact Finish Post: Tin
Insulation Color: Black
Pitch-Mating: 0.079" (2.00mm)
Row Spacing-Mating: 0.079" (2.00mm)
Connection Style: Board to board or cable
Fastening Type: Push-pull
Termination: Solder
Mounting Type: Surface mount
Package: Tube
Standard Package: 19
Temperature Range: -55°C to 125°C
ECCN: EAR99
Manufacturer: Samtec Inc.
