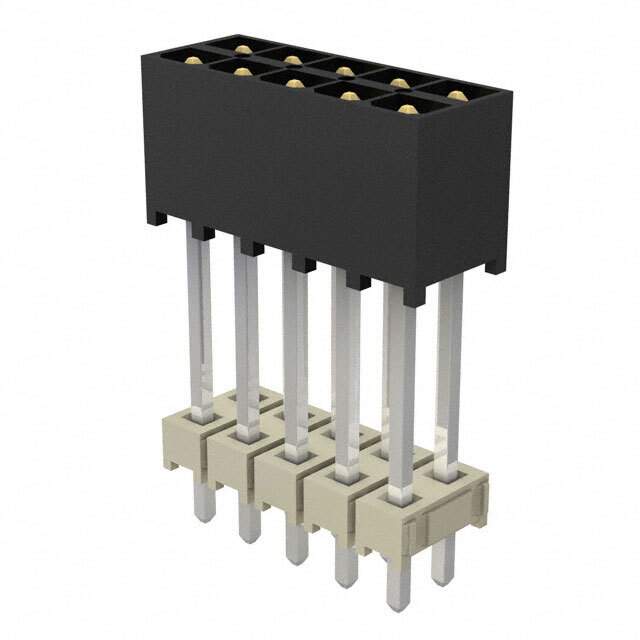

IPT1-105-05-L-D Real Image
Same model may have multiple batches, images only for reference.

IPT1-105-05-L-D

Part No IPT1-105-05-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet
IPT1-105-05-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Mini Mate® IPT1
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.155" (3.94mm)
Contact Length - Post 0.097" (2.47mm)
Overall Contact Length 0.660" (16.76mm)
Insulation Height 0.563" (14.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.3A per Contact
Voltage Rating 775VAC, 1095VDC
Base Product Number IPT1-105
Standard Package 42
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1337842-IPT1-105-05-L-D
Ultra Librarian 3D Model Ultra Librarian IPT1-105-05-L-D CAD Model

Description

The Samtec Mini Mate® IPT1 header is a rectangular connector with male pins.

  • Positions Loaded: Ten
  • Pitch-Mating: 0.100" (2.54mm)
  • Voltage Rating: 775VAC and 1095VDC
  • Contact Material: Phosphor Bronze
  • Contact Finish-Mating: Gold 10.0µin (0.25µm)
  • Contact Finish-Post: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Shrouded: 4 Wall
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Contact Length-Mating: 0.155" (3.94mm)
  • Contact Length-Post: 0.097" (2.47mm)
  • Overall Contact Length: 0.660" (16.76mm)
  • Insulation Height: 0.563" (14.30mm)
  • Contact Shape: Square
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • Base Product Number: IPT1-105-05-L-D
  • California Prop 65: Complies with warning information
