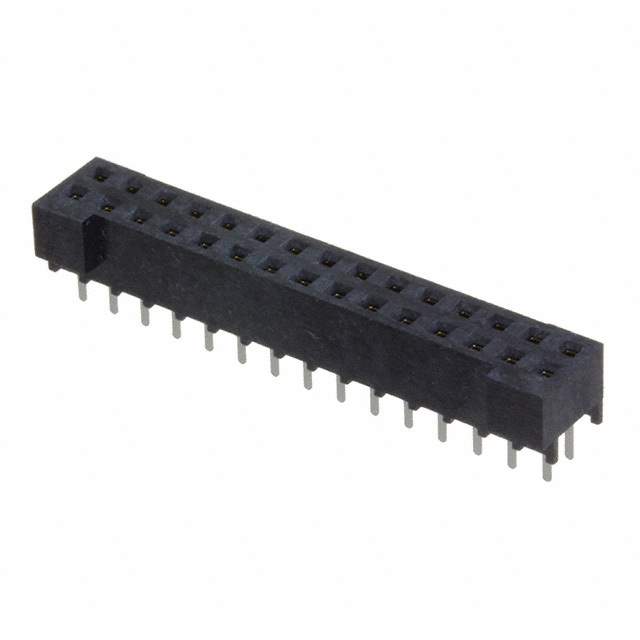

S2M-115-01-L-D

Get a Quote

Part No	S2M-115-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	S2M-115-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ S2M
Package	Tube
Connector Type	Socket
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.178" (4.51mm)
Contact Length - Post	0.082" (2.08mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	2.6A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	S2M-115
Other Names	S2M-115-01-L-D,SAM11658
Standard Package	19
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287955-S2M-115-01-L-D
Ultra Librarian 3D Model	Ultra Librarian S2M-115-01-L-D CAD Model

Description

The 1287955-S2M-115-01-L-D from Samtec Inc. is a rectangular connector that is commonly used in various applications such as connectors, interconnects, and headers.

Positions: 30
Positions Loaded: All
Contact Type: Female Socket
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Voltage Rating: Not Specified
Pitch-Mating: 0.079" (2.00mm)
Contact Finish-Mating: Gold with a thickness of 10.0µin (0.25µm)
Contact Finish-Post: Tin
Insulation Color: Black
Operating Temperature: -55°C to 125°C
