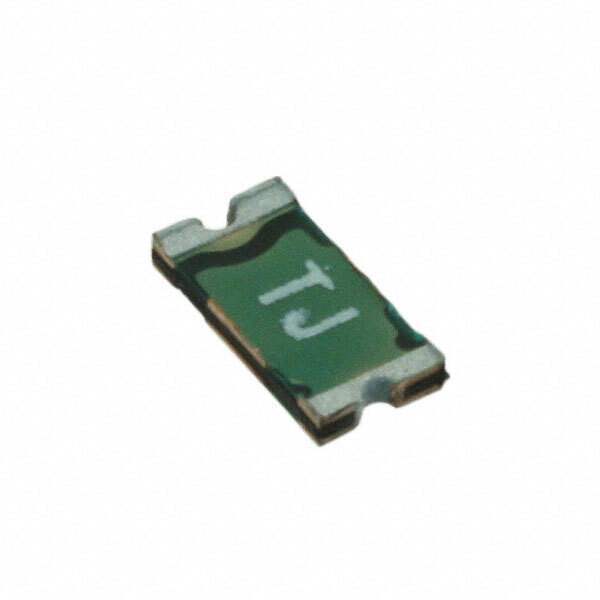

PTS12066V110 Eaton - Electronics Division
Same model may have multiple batches, images only for reference.

PTS12066V110

Part No PTS12066V110
Manufacturer Eaton / Cutler Hammer
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 1.1A 1206
Datasheet
PTS12066V110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306530-PTS12066V110
Manufacturer Eaton - Electronics Division
Category Circuit Protection -PTC Resettable Fuses
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Current - Max 100 A
Time to Trip 100 ms
Ultra Librarian 3D Model Ultra Librarian PTS12066V110 CAD Model

Description

Product features • Positive Temperature Coefficient (PTC) • SMT resettable fuse • Low resistance • Fast time-to-trip • Voltage range 6 V to 60 V • Current range from 0.05A to 2.0A<br /> • 1206 (3216 metric) compact footprint • Moisture sensitivity level (MSL): 1
