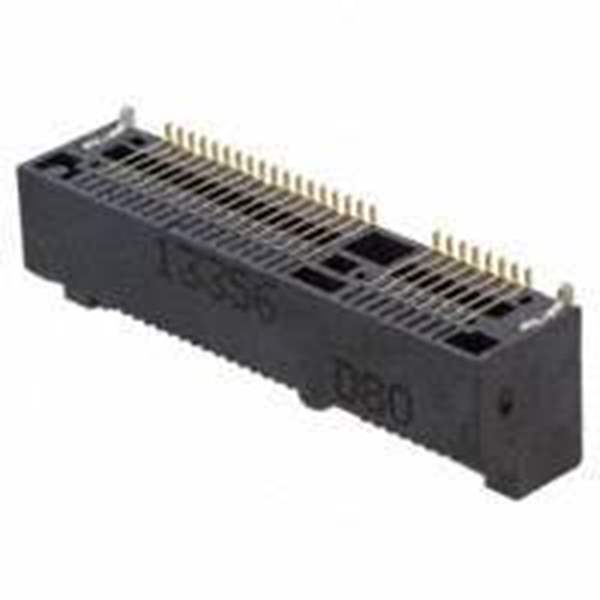

Part No 1759546-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MIN FML 52POS 0.031 / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Card Type PCI Express Mini Card
Gender Female
Number of Positions/Bay/Row -
Number of Positions 52
Card Thickness -
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features -
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Contact Type -
Color Black
Flange Feature -
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number 1759546
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364409-1759546-1
Ultra Librarian 3D Model Ultra Librarian 1759546-1 CAD Model

Description

The 1759546-1 is an edgeboard connector from TE Connectivity AMP Connectors.

  • Connector Type: Card Edge
  • Pitch: 0.031" (0.80mm)
  • Positions: 52
  • Rows: 2
  • Mounting Type: Surface Mountable, Right-Angle
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Status: Active
  • Package: Tape & Reel
  • REACH: Not affected by REACH
  • ECCN: EAR99
