Same model may have multiple batches, images only for reference.

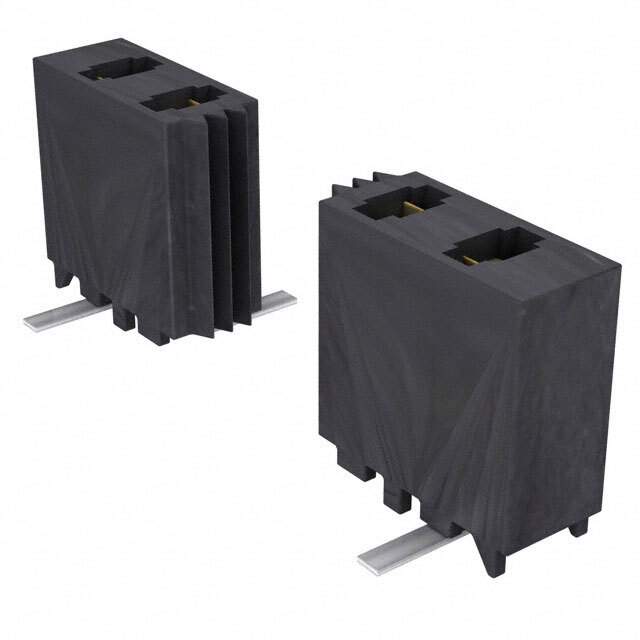

MMS-108-02-L-SV

Name: MMS-108-02-L-SV
Brand: Samtec Inc.
SKU: 1079566
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMS-108-02-L-SV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.079 GOLD SMD / 8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet	MMS-108-02-L-SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	MMS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	3.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	MMS-108
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1238-08
Standard Package	1
Win Source Part Number	1079566-MMS-108-02-L-SV
Ultra Librarian 3D Model	Ultra Librarian MMS-108-02-L-SV CAD Model

Alternative Products

Description

The MMS series 8-position female socket receptacle connector is a rectangular connector used in board-to-board or cable applications.

Positions: 8
Pitch: 0.079 inches (2.00mm)
Mounting: SMD (SMT)
Fastening: Push-Pull
Loaded: All positions
Contact Material: Phosphor Bronze
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Contact Shape: Square
Contact Length-Post: Not specified
Manufacturer: Samtec Inc.
Also Known As: SAM1238-08
