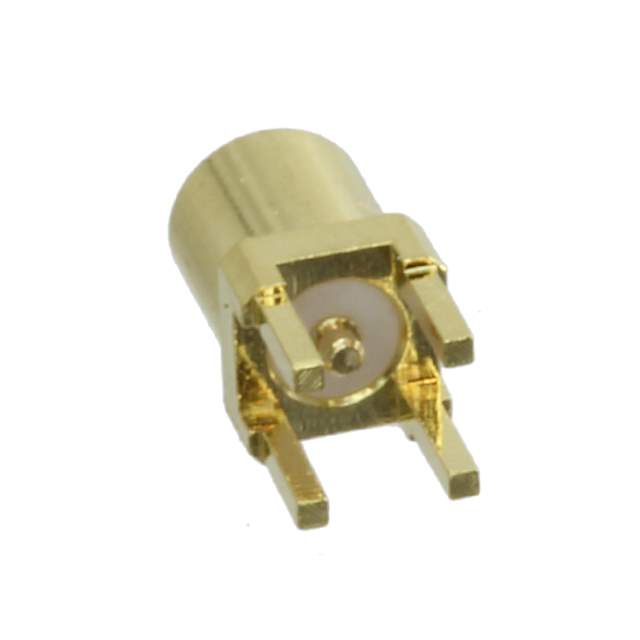

Same model may have multiple batches, images only for reference.

MMCX-J-P-H-ST-MT1

Name: MMCX-J-P-H-ST-MT1
Brand: Samtec Inc.
SKU: 995180
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MMCX-J-P-H-ST-MT1
Manufacturer	Samtec Inc.
Catalog	Coaxial Connectors (RF)
Description	CONN MMCX JACK STR 50 OHM PCB / MMCX Connector Jack, Female Socket 50Ohm Through Hole Solder
Datasheet	MMCX-J-P-H-ST-MT1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	Samtec Inc.
Package	Tray
Connector Style	MMCX
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Through Hole
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Beryllium Copper
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 125°C
Voltage Rating	500 V
Base Product Number	MMCX-J
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	MMCX-J-P-H-ST-MT1-ND,SAM10616
Standard Package	1
Win Source Part Number	995180-MMCX-J-P-H-ST-MT1
Ultra Librarian 3D Model	Ultra Librarian MMCX-J-P-H-ST-MT1 CAD Model

Alternative Products

Description

The 995180-MMCX-J-P-H-ST-MT1 is a 50 Ohm snap-on MMCX female jack coaxial connector designed for use in RF applications.

Part Number: 995180-MMCX-J-P-H-ST-MT1
Impedance: 50 Ohm
Connector Type: MMCX female jack coaxial connector
Voltage Rating: 500 V
Maximum Frequency: 6 GHz
Housing Color: Gold
Body Finish: Gold
Body Material: Brass
Center Contact Material: Beryllium Copper plated with Gold
Contact Termination: Solder
Mounting Type: Through-Hole
RoHS Compliant: Yes
Operating Temperature: -65°C to 125°C
Manufacturer: Samtec Inc.
