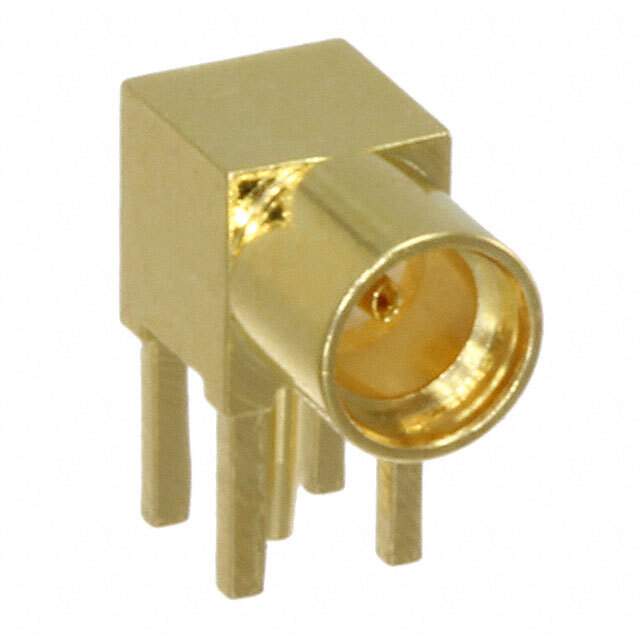

MMCX-J-P-H-RA-TH1 Real Image
Same model may have multiple batches, images only for reference.

MMCX-J-P-H-RA-TH1

Part No MMCX-J-P-H-RA-TH1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Description CONN MMCX JACK R/A 50 OHM PCB / MMCX Connector Jack, Female Socket 50Ohm Through Hole, Right Angle Solder
Datasheet
MMCX-J-P-H-RA-TH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Samtec Inc.
Package Tray
Connector Style MMCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Voltage Rating 500 V
Base Product Number MMCX-J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names SAM10615,MMCX-J-P-H-RA-TH1-ND
Standard Package 1
Win Source Part Number 1150985-MMCX-J-P-H-RA-TH1
Ultra Librarian 3D Model Ultra Librarian MMCX-J-P-H-RA-TH1 CAD Model

Description

This MMCX-J-P-H-RA-TH1 jack, female socket connector from Samtec Inc. is a coaxial connector with a snap-on fastening type.

  • Connector Type: Coaxial Connector
  • Fastening Type: Snap-On
  • Voltage Rating: 500 V
  • Impedance: 50Ohm
  • Connector Style: MMCX
  • Housing Color: Gold
  • Frequency Range: Up to 6 GHz
  • Temperature Range: -65°C ~ 125°C
  • Body Material: Brass
  • Center Contact Material: Beryllium Copper
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Contact Termination: Solder
  • Shield Termination: Solder
  • Mounting Type: Through-Hole, Right-Angle
  • Packaging: Tray
