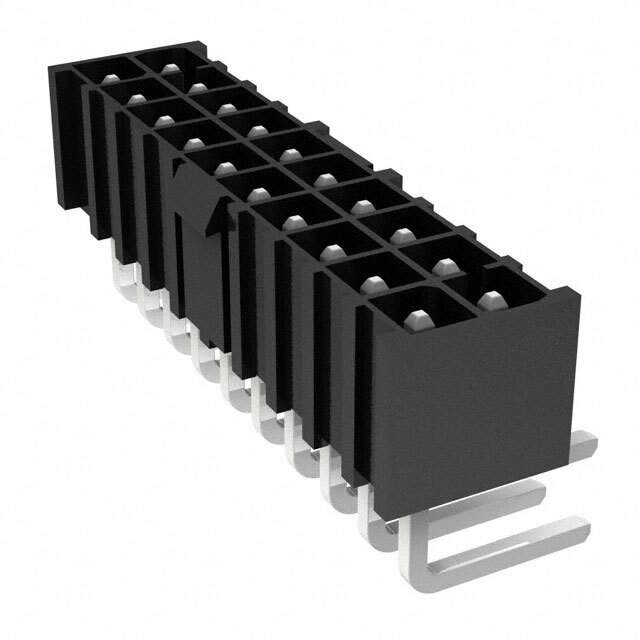

The IPBT-110-H1-T-D-RA-K is a high-quality, insulated IDC (Insulation Displacement Contact) cable assembly connector manufactured by Samtec Inc. It is part of the IPBT series, designed for board-to-board connections, offering reliable and efficient signal transmission. This particular model is a right-angle connector.

Applications:

• Board-to-board connections in electronic devices
• Data communication equipment
• Industrial control systems
• Medical devices
• Telecommunications equipment

Features:

• IDC Termination: Provides a gas-tight connection for reliable signal integrity.
• Right-Angle Configuration: Offers design flexibility in tight spaces.
• Double Row: Increases the number of available contacts.
• Insulated Housing: Protects contacts and prevents shorts.
• Keyed: Ensures proper mating and prevents mismating.

Benefits:

• Reliable Connection: IDC termination provides a robust and long-lasting connection.
• Space-Saving Design: Right-angle configuration allows for dense board layouts.
• High Density: Double row design maximizes signal carrying capacity.
• Protection: Insulated housing safeguards against electrical hazards.
• Easy Mating: Keying feature simplifies assembly and prevents errors.

Additional Details:

The IPBT-110-H1-T-D-RA-K features a 2.54mm pitch and is designed to mate with compatible Samtec headers. The '110' in the part number likely indicates the number of contacts (though the datasheet should be consulted for confirmation). 'H1' probably refers to the housing style. 'T' specifies the plating material (typically gold or tin). 'D' signifies double row, and 'RA' indicates right angle. 'K' represents the keying option. These connectors are often used with ribbon cables.

Consult the Samtec datasheet for specific electrical characteristics, mechanical dimensions, mating recommendations, and environmental ratings. Proper cable selection and termination techniques are essential for optimal performance. This connector provides a robust, space-efficient, and reliable interconnect solution for various electronic applications.
