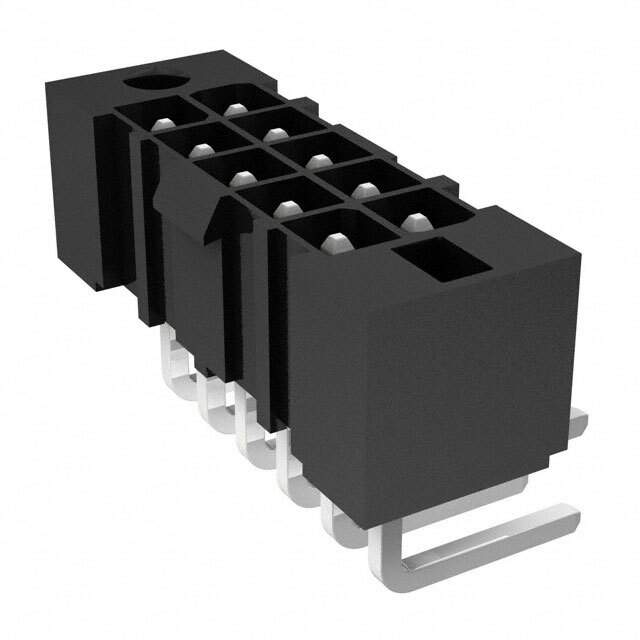

IPBT-105-H1-T-D-RA-GP

Name: IPBT-105-H1-T-D-RA-GP
Brand: Samtec Inc.
SKU: 776854
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IPBT-105-H1-T-D-RA-GP
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.165 DOUBLE ROW TERMINAL ASSY / Conn Mate Terminal Strip HDR 10 POS 4.19mm Solder RA Thru-Hole 10 Terminal 1 Port
Datasheet	IPBT-105-H1-T-D-RA-GP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Power Mate IPBT
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.260" (6.60mm)
Contact Length - Post	0.147" (3.73mm)
Insulation Height	0.424" (10.77mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Mating Flange
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	400VAC, 565VDC
Win Source Part Number	776854-IPBT-105-H1-T-D-RA-GP
Popularity	Medium
Supply and Demand Status	Limited
Family Name	IPBT
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian IPBT-105-H1-T-D-RA-GP CAD Model

Alternative Products

Description

The Power Mate IPBT series header connector from Samtec Inc. is a 10-position connector.

Positions: 10
Applications: Board-to-board or cable
Fastening Mechanism: Locking ramp
Mating Flange: Yes
Contact Material: Copper alloy
Voltage Rating: 400VAC, 565VDC
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Mounting: Through-hole
Orientation: Right Angle
Contact Finish: Tin
Contact Length: 0.147" (3.73mm)
Temperature Range: -55°C to 105°C
