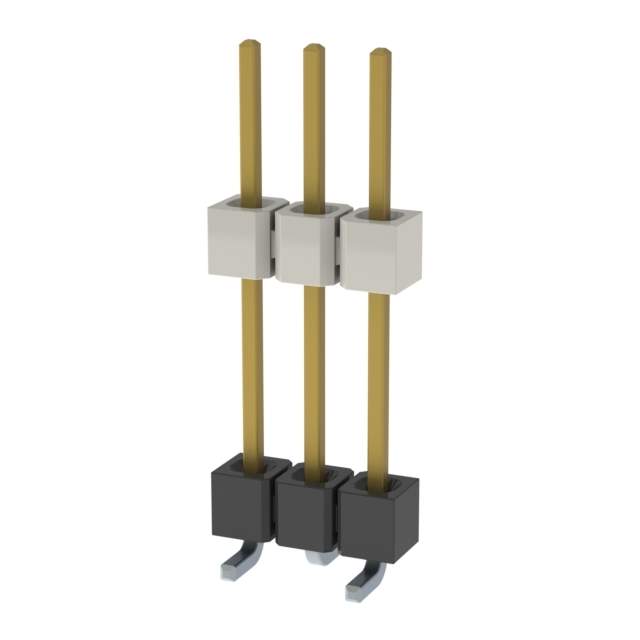

HW-03-10-S-S-560-SM

Name: HW-03-10-S-S-560-SM
Brand: Samtec Inc.
SKU: 1063769
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HW-03-10-S-S-560-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 3POS 0.1 STACK SMD GOLD / 3 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
Datasheet	HW-03-10-S-S-560-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Mfr	Samtec Inc.
Series	Flex Stack, HW
Package	Bulk
Number of Positions	3
Pitch	0.100" (2.54mm)
Number of Rows	1
Length - Overall Pin	0.765" (19.431mm)
Length - Post (Mating)	0.205" (5.207mm)
Length - Stack Height	0.560" (14.224mm)
Mounting	SMD (SMT)
Termination	Solder
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30.0µin (0.76µm)
Color	Black
Base Product Number	HW-03-10
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1063769-HW-03-10-S-S-560-SM
Ultra Librarian 3D Model	Ultra Librarian HW-03-10-S-S-560-SM CAD Model

Alternative Products

Description

The Flex Stack HW series board-to-board connectors are a reliable choice for connecting electronic components.

Positions: 3
Pitch: 0.100 inches (2.54mm)
Stack Height: 0.560 inches (14.224mm)
Color: Black
Termination: Soldered
Length of Post (Mating): 0.205 inches (5.207mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Overall Pin Length: 0.765 inches (19.431mm)
Manufacturer: Samtec Inc.
