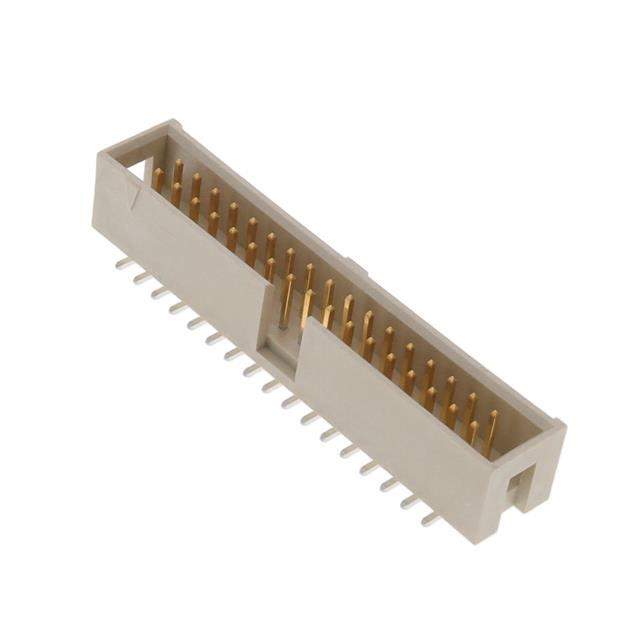

HTST-117-01-L-DV-A

Name: HTST-117-01-L-DV-A
Brand: Samtec Inc.
SKU: 1216248
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTST-117-01-L-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 34POS 2.54MM / Connector Header Surface Mount 34 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-117
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	11
Win Source Part Number	1216248-HTST-117-01-L-DV-A
Ultra Librarian 3D Model	Ultra Librarian HTST-117-01-L-DV-A CAD Model

Description

The HTST-117-01-L-DV-A is a 34-position male pin header connector from the Flex Stack, HTST series.

Application: Designed for board-to-cable/wire applications
Package: Available in a tube package
Features: Board guide and keying slot
Contact Material: Phosphor bronze
Current Rating: 3.4A per contact
Pitch-Mating: 0.100" (2.54mm)
Shrouded: With 4 walls
Row Spacing-Mating: 0.100" (2.54mm)
Manufacturer: Samtec Inc.
