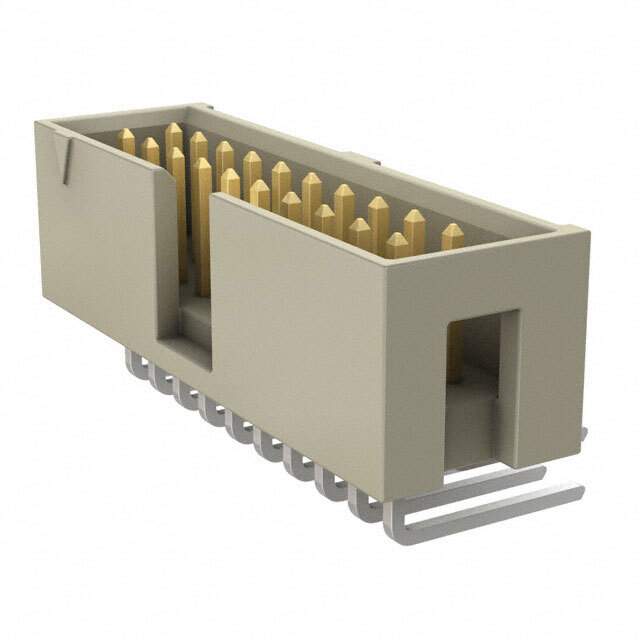

Same model may have multiple batches, images only for reference.

HTST-110-04-L-D-RA

Name: HTST-110-04-L-D-RA
Brand: Samtec Inc.
SKU: 1219497
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTST-110-04-L-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Datasheet	HTST-110-04-L-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.365" (9.27mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM12652,HTST-110-04-L-D-RA-ND
Standard Package	17
Win Source Part Number	1219497-HTST-110-04-L-D-RA
Ultra Librarian 3D Model	Ultra Librarian HTST-110-04-L-D-RA CAD Model

Alternative Products

Description

The Samtec Inc. electronic component is a connector with a pitch-mating of 0.100" (2.54mm) and a contact finish-mating of gold.

Win Source Part Number: 1219497-HTST-110-04-L-D-RA
Series: Flex Stack, HTST
Number of Positions: 20
Keying: Slot
Style: Board to Cable/Wire
Temperature Range: -55°C to 125°C
Supply and Demand Status: Limited
