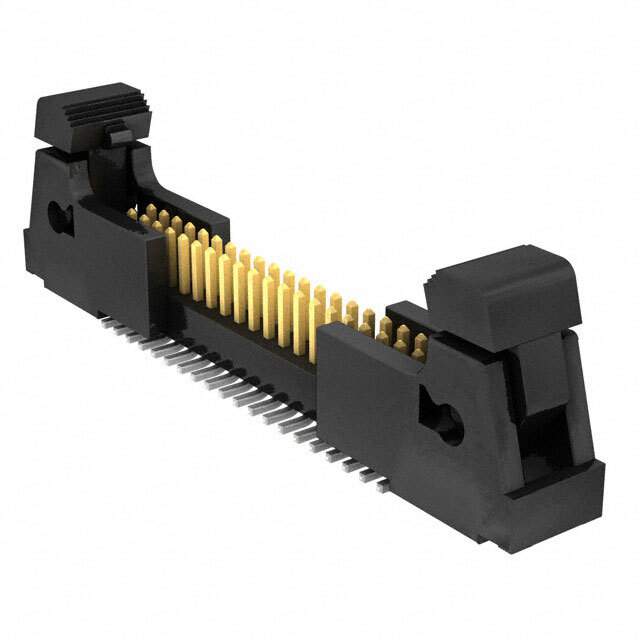

FTSH-120-01-L-DV-EJ-P-TR Real Image
Same model may have multiple batches, images only for reference.

FTSH-120-01-L-DV-EJ-P-TR

Part No FTSH-120-01-L-DV-EJ-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 40POS DUAL .05" SMD / Conn Ejector Header HDR 40 POS 1.27mm Solder ST SMD T/R
Datasheet
FTSH-120-01-L-DV-EJ-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series FTSH
Packaging Reel package
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 40
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features End Shrouds, Pick and Place
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3.3A per Contact
Win Source Part Number 774823-FTSH-120-01-L-DV-EJ-P-TR
Popularity Medium
Supply and Demand Status Limited
Family Name FTSH
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FTSH-120-01-L-DV-EJ-P-TR CAD Model

Description

The Samtec Inc. 774823-FTSH-120-01-L-DV-EJ-P-TR connector is a header, cuttable connector that features male pins.

  • Positions: 40
  • Package: Reel
  • Temperature Range: -55°C to 125°C
  • Series: FTSH
  • Application: Board to Board or Cable
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold 10μin (0.25μm)
  • Contact Finish-Post: Tin
  • Category: Connectors, Interconnects
  • Supply and Demand Status: Limited
