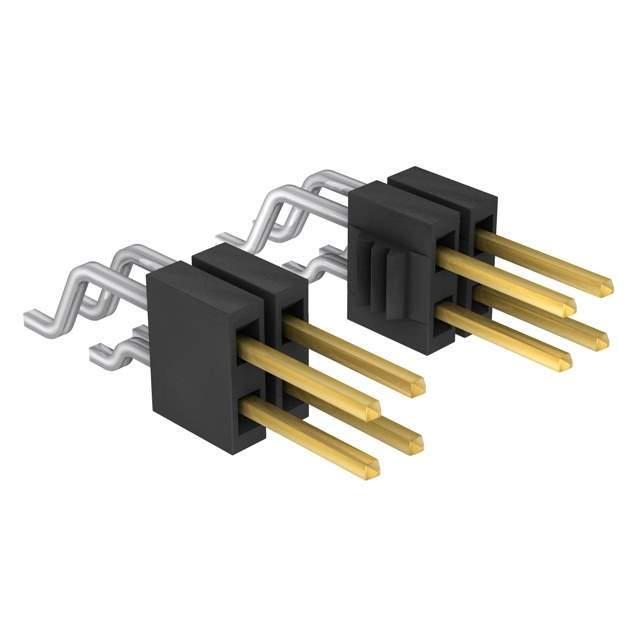

Same model may have multiple batches, images only for reference.

FTSH-107-04-L-DH

Name: FTSH-107-04-L-DH
Brand: Samtec Inc.
SKU: 811937
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-107-04-L-DH
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 14POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.150" (3.81mm)
Insulation Height	0.135" (3.43mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Manufacturer Pack Quantity	1
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	811940-FTSH-107-04-L-DH
Ultra Librarian 3D Model	Ultra Librarian FTSH-107-04-L-DH CAD Model

Alternative Products

Description

This Samtec Inc. header connector is a surface mount, right angle connector.

Positions: 14
Rows: 2
Connector Type: Cuttable header
Contact Type: Male pin
Contact Material: Phosphor Bronze
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold 10.0μin (0.25μm)
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Shrouded: Unshrouded
Row Spacing-Mating: 0.050" (1.27mm)
Insulation Height: 0.135" (3.43mm)
Contact Shape: Square
Temperature Range: -55°C ~ 125°C
Current Rating: 3.4A per Contact
Applications: Board to board or cable style
