Same model may have multiple batches, images only for reference.

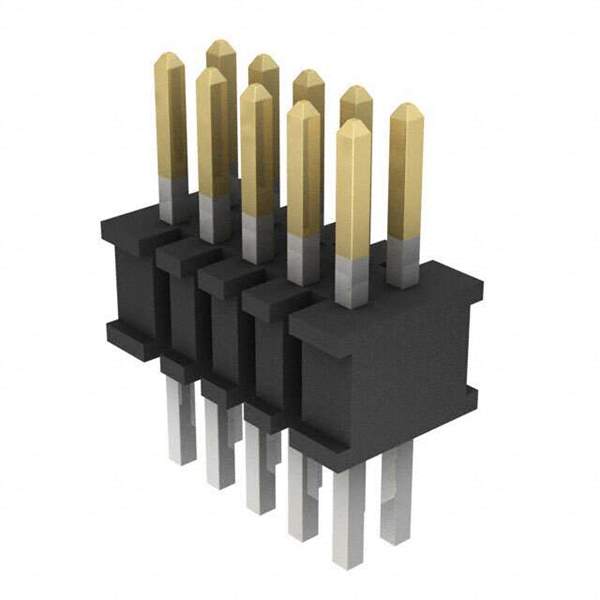

FTSH-105-04-L-D Real Image
Same model may have multiple batches, images only for reference.

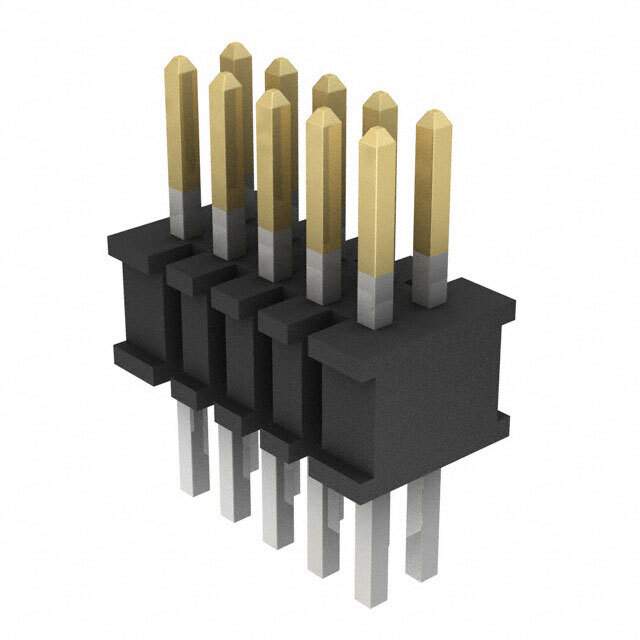

FTSH-105-04-L-D

Part No FTSH-105-04-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 1.27MM / Connector Header Through Hole 10 position 0.050" (1.27mm)
Datasheet
FTSH-105-04-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tube
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.150" (3.81mm)
Contact Length - Post 0.090" (2.29mm)
Overall Contact Length 0.339" (8.60mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM10502,FTSH-105-04-L-D-ND
Standard Package 92
Win Source Part Number 1231020-FTSH-105-04-L-D
Ultra Librarian 3D Model Ultra Librarian FTSH-105-04-L-D CAD Model

Description

The 1231020-FTSH-105-04-L-D electronic component is a rectangular connector that is designed to provide reliable board-to-board connections.

  • Pitch: 0.050 inches
  • Color: Black
  • Termination: Solder
  • Mounting: Through-hole
  • Contact Finish: Gold
  • Pins: Male
  • Voltage Rating: -
  • Current Rating: 3.4A per contact
