Same model may have multiple batches, images only for reference.

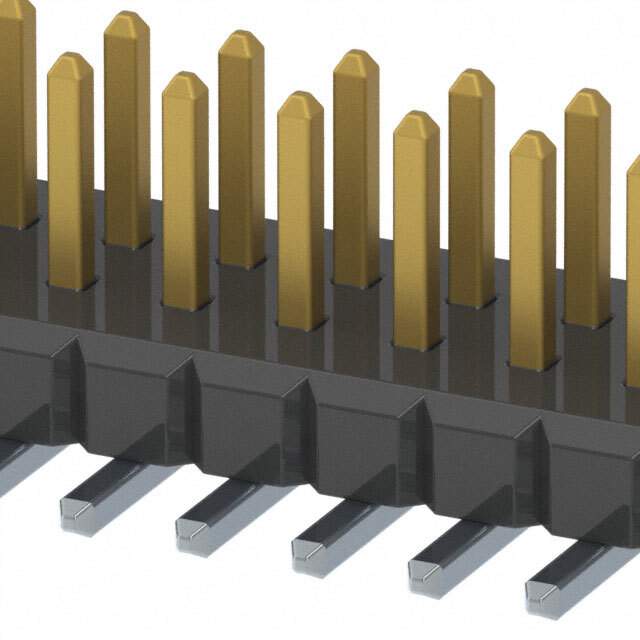

FTM-111-02-L-DV Real Image
Same model may have multiple batches, images only for reference.

FTM-111-02-L-DV

Part No FTM-111-02-L-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 22POS 1MM / Connector Header Surface Mount 22 position 0.039" (1.00mm)
Datasheet
FTM-111-02-L-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTM
Package Tube
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 22
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.075" (1.90mm)
Insulation Height 0.038" (0.97mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 2.8A per Contact
Base Product Number FTM-111
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 53
Win Source Part Number 1017400-FTM-111-02-L-DV
Ultra Librarian 3D Model Ultra Librarian FTM-111-02-L-DV CAD Model

Description

The FTM series from Samtec Inc. offers a 22-position header connector with all positions loaded and two rows.

  • Positions: 22
  • Rows: 2
  • Fastening Type: Push-pull
  • Termination: Solder
  • Packaging: Tube
  • Voltage Rating: -
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold (10.0μin (0.25μm) mating), Tin (post)
  • Current Rating: 2.8A per contact
  • Contact Shape: Square
  • Connection: Board-to-board
  • Pitch: 0.039" (1.00mm) mating
  • Row Spacing: 0.039" (1.00mm)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Height: 0.038" (0.97mm)
  • Shrouded: Unshrouded
  • Temperature Range: -55°C to 125°C
