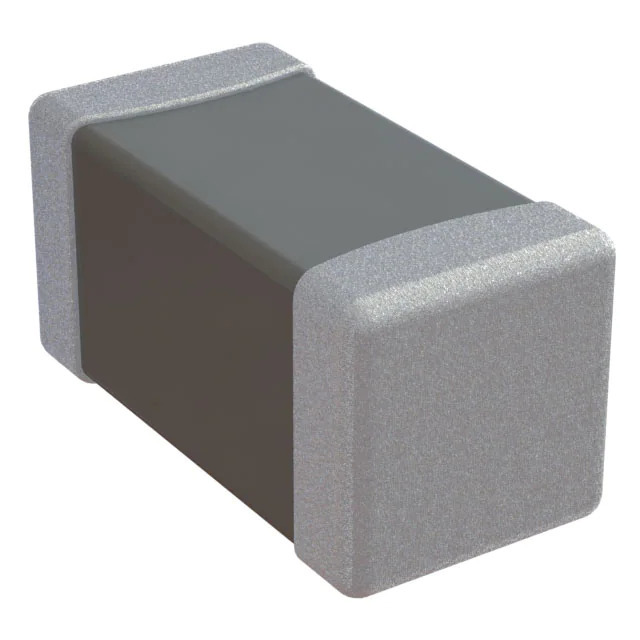

Same model may have multiple batches, images only for reference.

AC0402KRX7R7BB102

Name: AC0402KRX7R7BB102
Brand: Yageo
SKU: 1358692
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AC0402KRX7R7BB102
Manufacturer	Yageo
Catalog	Ceramic Capacitors
Description	CAP CER 1000PF 16V X7R 0402 / 1000 pF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	YAGEO
Series	AC
Package	Tape & Reel
Product Status	Active
Capacitance	1000 pF
Tolerance	±10%
Voltage - Rated	16V
Temperature Coefficient	X7R
Temperature Range - Operating	-55°C ~ 125°C
Features	-
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.022" (0.55mm)
Lead Spacing	-
Lead Style	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Win Source Part Number	1358692-AC0402KRX7R7BB102
Ultra Librarian 3D Model	Ultra Librarian AC0402KRX7R7BB102 CAD Model

Description

The 1358692-AC0402KRX7R7BB102 is a ceramic capacitor designed for automotive applications.

Series: AC
Voltage Rating: 16V
Capacitance: 1000 pF
Tolerance: ±10%
Package / Case: 0402 (1005 Metric)
Operating Temperature: -55°C to 125°C
Mounting Type: Surface Mount
Packaging: Tape & Reel
Standard: AEC-Q200
Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height: 0.022" (0.55mm) max
