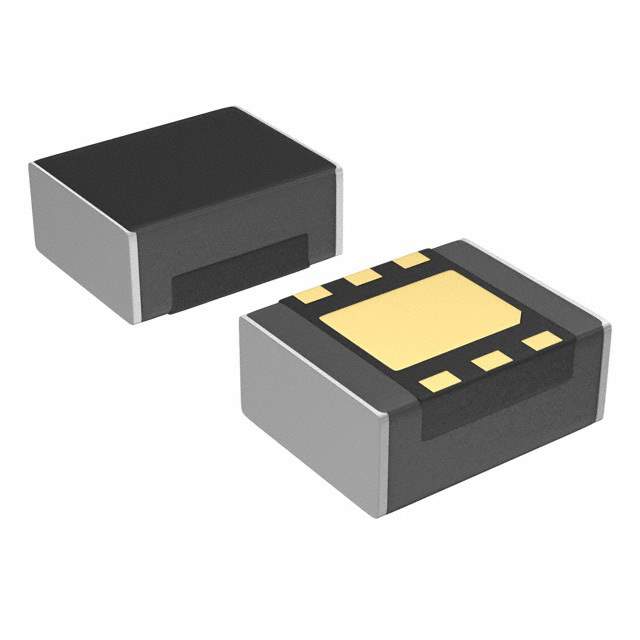

XCL210D301GR-G

Name: XCL210D301GR-G
Brand: Torex Semiconductor Ltd
SKU: 1140993
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XCL210D301GR-G
Manufacturer	Torex Semiconductor Ltd
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3V 50MA / Non-Isolated PoL Module DC DC Converter 1 Output 3V 50mA 2V - 6V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Torex Semiconductor Ltd
Series	XCL210
Package	Tape & Reel
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2V
Voltage - Input (Max)	6V
Voltage - Output 1	3V
Current - Output (Max)	50mA
Applications	ITE (Commercial)
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93%
Mounting	SMD (SMT)
Package / Case	8-SMD
Dimension	0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Control Features	Enable, Active High
Base Product Number	XCL210
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	893-1262-2,893-1262-1,893-1262-6
Standard Package	3,000
Win Source Part Number	1140993-XCL210D301GR-G
Ultra Librarian 3D Model	Ultra Librarian XCL210D301GR-G CAD Model

Description

The Torex Semiconductor Ltd XCL210D301GR-G is a non-isolated PoL module that is designed for commercial ITE applications.

Efficiency: 93%
Current Output: 50mA
Package: Tape and Reel
Standard Package: 3,000
Size: 2.5mm x 2.0mm x 1.0mm
Features: SCP and UVLO
