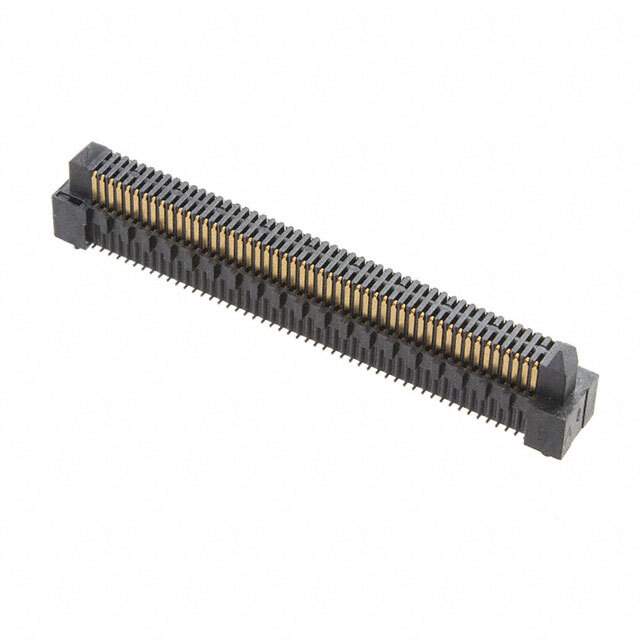

ERM8-050-05.0-S-DV-TR Real Image
Same model may have multiple batches, images only for reference.

ERM8-050-05.0-S-DV-TR

Part No ERM8-050-05.0-S-DV-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HDR 100POS SMD GOLD / 100 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Edge Rate™ ERM8
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header, Center Strip Contacts
Number of Positions 100
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 10mm, 12mm, 15mm
Height Above Board 0.351" (8.91mm)
Base Product Number ERM8-050
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM13803DKR-ND,SAM13803TR-ND,SAM13803CT-ND,SAM13803DKRINACTIVE,SAM13803CT,SAM13803DKR,SAM13803TR,612-ERM8-050-05.0-S-DV-TRCT,612-ERM8-050-05.0-S-DV-TR,ERM8-050-05.0-S-DV-TR-ND
Standard Package 250
Win Source Part Number 958843-ERM8-050-05.0-S-DV-TR
Ultra Librarian 3D Model Ultra Librarian ERM8-050-05.0-S-DV-TR CAD Model

Description

The ERM8-050-05.0-S-DV-TR is a rectangular connector electronic component designed for use in edge type, mezzanine (board to board) applications.

  • Application: Edge type, mezzanine (board to board)
  • Series: Edge Rate™ ERM8
  • Number of Positions: 100
  • Pitch: 0.031" (0.80mm)
  • Package: Tape & Reel (TR), Cut Tape (CT)
  • Height Above Board: 0.351" (8.91mm)
  • Manufacturer: Samtec Inc.
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
