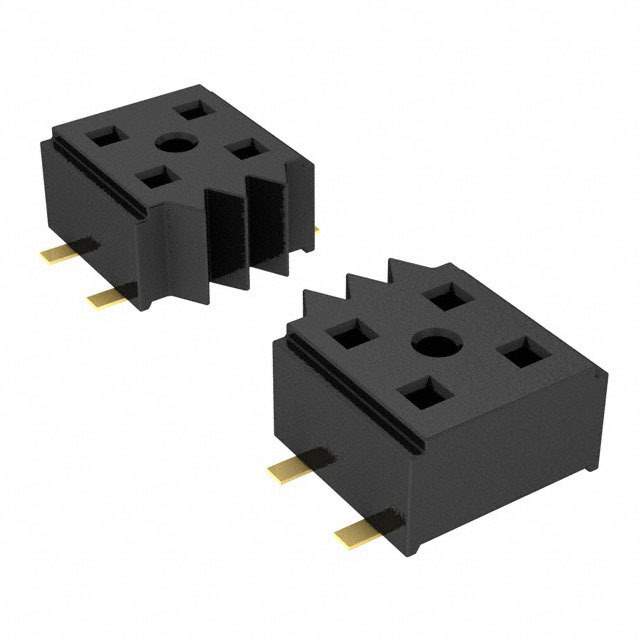

Same model may have multiple batches, images only for reference.

CLT-147-02-G-D

Name: CLT-147-02-G-D
Brand: Samtec Inc.
SKU: 1211172
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CLT-147-02-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 94POS 0.079 GOLD SMD / 94 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet	CLT-147-02-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLT
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	94
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.083" (2.10mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.1A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	CLT-147
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1165-47
Standard Package	1
Win Source Part Number	1211172-CLT-147-02-G-D
Ultra Librarian 3D Model	Ultra Librarian CLT-147-02-G-D CAD Model

Description

The Samtec Inc. CLT-147-02-G-D is a rectangular connector that has 94 positions and two rows.

Connector Type: Board-to-board
Number of Positions: 94
Number of Rows: 2
Pitch: 0.079 inches
Contact Finish: Gold
Temperature Range: -55°C to 125°C
Current Rating: 4.1A per contact
Suitable for: Applications that require high-speed data transfer
