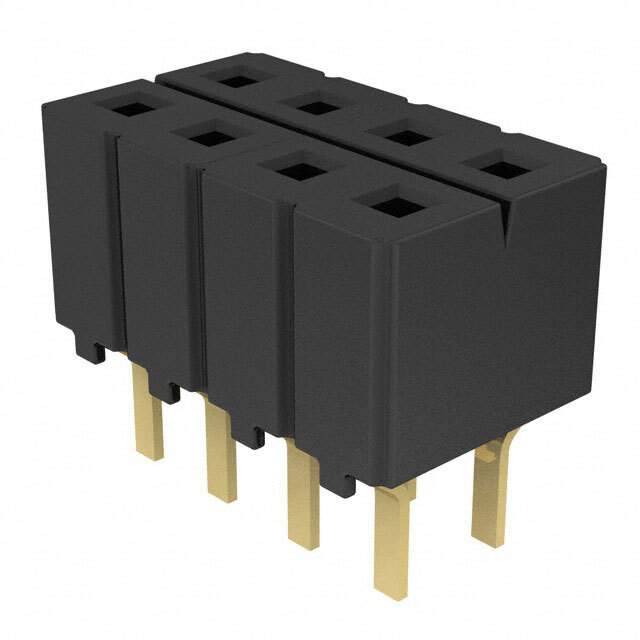

CES-104-02-G-D Real Image
Same model may have multiple batches, images only for reference.

CES-104-02-G-D

Part No CES-104-02-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 8POS 0.1 GOLD PCB / 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
CES-104-02-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CES
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.200" (5.08mm)
Contact Length - Post 0.223" (5.66mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number CES-104
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1120464-CES-104-02-G-D
Ultra Librarian 3D Model Ultra Librarian CES-104-02-G-D CAD Model

Description

The CES-104-02-G-D receptacle from the Samtec CES series is a reliable and efficient connector solution for a wide range of electronic applications.

  • Number of Sockets: 8 female sockets
  • Row Configuration: 2-row
  • Pitch: 0.100 inches (2.54mm)
  • Application: Board-to-board
  • Current Rating: 3A
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold finish
  • Halogen-Free: Yes
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Availability: Win Source with a medium popularity rating
