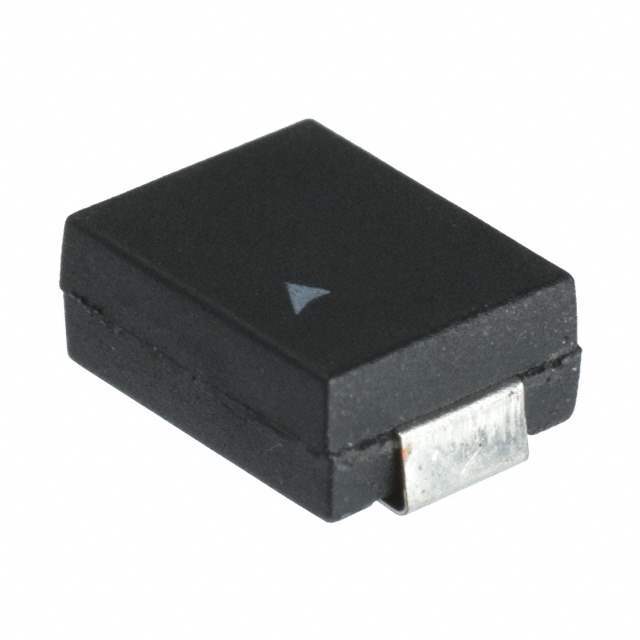

B59201P1080A062EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B59201P1080A062

Part No B59201P1080A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 165MA 3225
Datasheet
B59201P1080A062 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Category Circuit Protection PTC Resettable Fuses
Part Status Active
Type Ceramic
Voltage - Max 30V
Current - Hold (Ih) (Max) 165 mA
Current - Trip (It) 340 mA
Current - Max 1 A
Resistance - 25°C (Typ) 4.6 Ohms
Operating Temperature -40°C ~ 60°C
Mounting Type Surface Mount
Package / Case 3225 (8063 Metric)
Size / Dimension 0.315" L x 0.248" W (8.00mm x 6.30mm)
Thickness (Max) 0.150" (3.80mm)
Ultra Librarian 3D Model Ultra Librarian B59201P1080A062 CAD Model

Description

Ceramic PTC Resettable Fuse 30V 165 mA Ih Surface Mount 3225 (8063 Metric)
