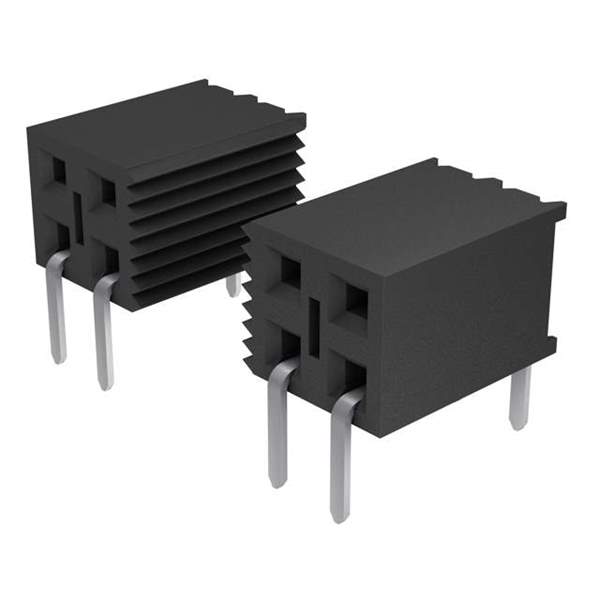

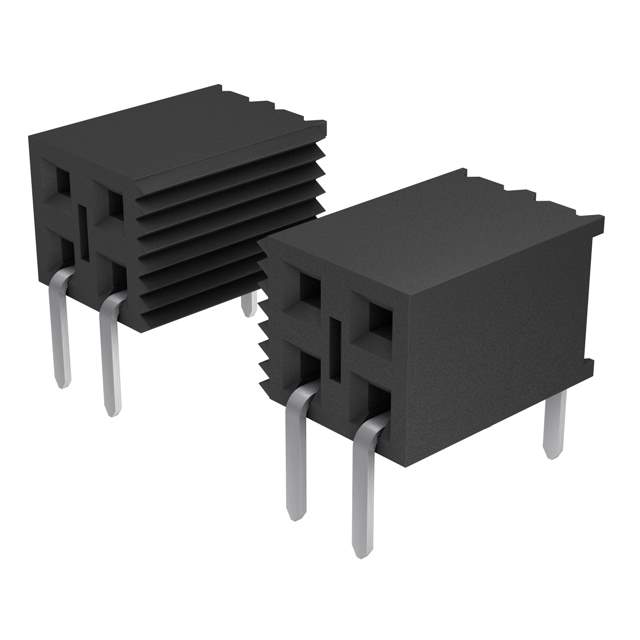

BCS-130-S-D-HE

Name: BCS-130-S-D-HE
Brand: Samtec Inc.
SKU: 1216555
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BCS-130-S-D-HE
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 60POS 0.1 GOLD PCB R/A / 60 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Datasheet	BCS-130-S-D-HE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Claw™ BCS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	60
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.210" (5.33mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.6A per Contact
Voltage Rating	475VAC
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	BCS-130
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	7
Win Source Part Number	1216555-BCS-130-S-D-HE
Ultra Librarian 3D Model	Ultra Librarian BCS-130-S-D-HE CAD Model

Description

The BCS-130-S-D-HE is a 60-position rectangular connector from Samtec Inc.

Connector Type: Receptacle
Contact Type: Female socket
Positions Loaded: All
Rows: Two
Voltage Rating: 475VAC
Series: Tiger Claw BCS
Contact Finish-Mating: Gold
Insulation Material: Liquid crystal polymer (LCP) and glass filled
Connection Style: Board-to-board
Mounting Type: Right-angle
