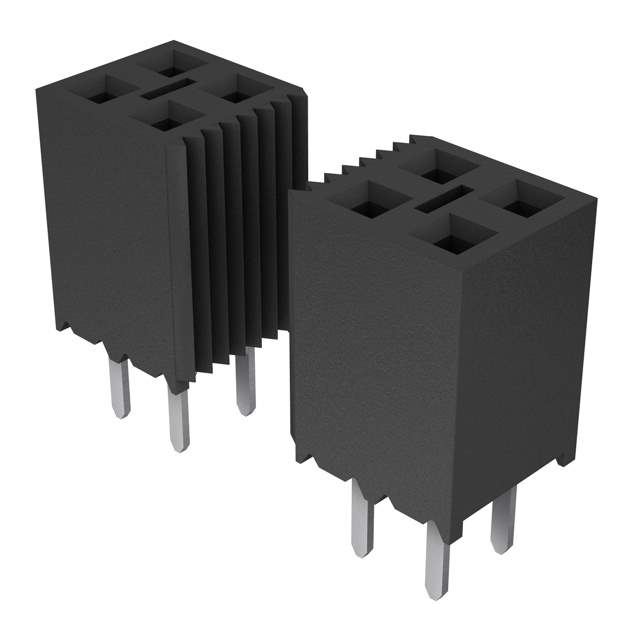

BCS-109-L-D-TE Real Image
Same model may have multiple batches, images only for reference.

BCS-109-L-D-TE

Part No BCS-109-L-D-TE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 18POS 0.1 GOLD PCB / 18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
BCS-109-L-D-TE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Claw™ BCS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 18
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number BCS-109
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1008-09
Standard Package 1
Win Source Part Number 1033995-BCS-109-L-D-TE
Ultra Librarian 3D Model Ultra Librarian BCS-109-L-D-TE CAD Model

Description

The Samtec Inc. Tiger Claw™ BCS 109-L-D-TE connector is a high-quality female component designed for a variety of applications.

  • Number of Contacts: 18
  • Contact Shape: Square
  • Pitch: 0.100" (2.54mm)
  • Package: Tube
  • Mounting: Through-hole technology
  • RoHS compliant: Yes
  • Voltage Rating: 475VAC
