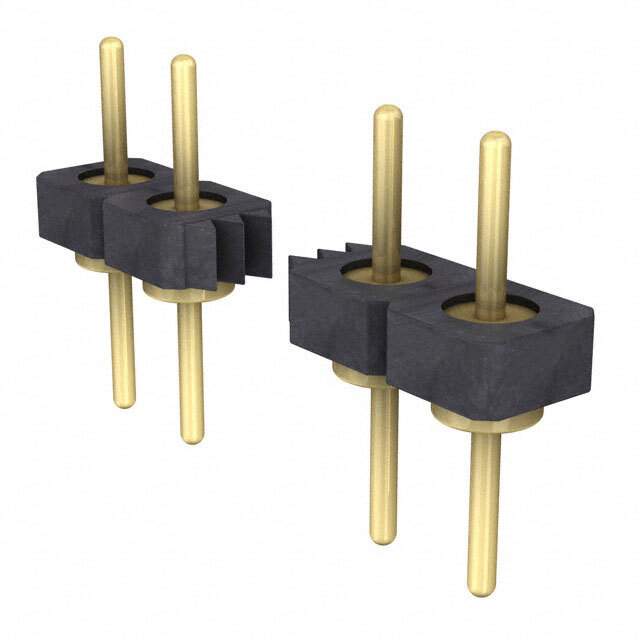

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series BBL
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 32
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.105" (2.67mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.300" (7.62mm)
Insulation Height 0.070" (1.78mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Nickel
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number BBL-132
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names BBL132GE,SAM1000-32
Standard Package 7
Win Source Part Number 1050089-BBL-132-G-E
Ultra Librarian 3D Model Ultra Librarian BBL-132-G-E CAD Model

Description

The Samtec Inc. BBL-132-G-E is a board to board connector that is part of the rectangular connectors - headers, male pins category.

  • Manufacturer: Samtec Inc.
  • Series: BBL
  • Positions: 32
  • Connector Type: Header
  • Contact Gender: Male Pins
  • Termination: Solder
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Temperature Range - Operating: -55°C ~ 125°C
