Same model may have multiple batches, images only for reference.

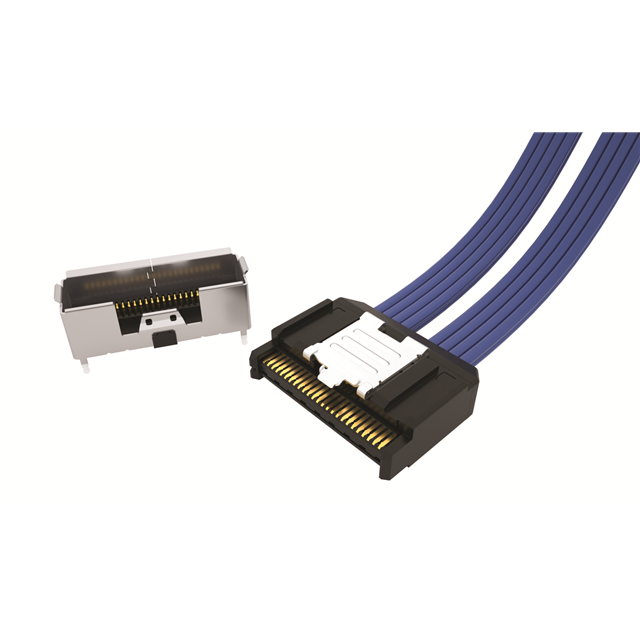

ARC6-16-40.0-LU-LU-3-1 Real Image
Same model may have multiple batches, images only for reference.

ARC6-16-40.0-LU-LU-3-1

Part No ARC6-16-40.0-LU-LU-3-1
Manufacturer Samtec Inc.
Catalog Pluggable Cables
Description CABLE M-M 1.02M / 32 Position Plug to Plug 3.33' (1.02m) Blue Shielded
Datasheet
ARC6-16-40.0-LU-LU-3-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Pluggable Cables
Mfr Samtec Inc.
Series AcceleRate® ARC6
Package Bulk
Number of Positions 32
Connector Type Plug to Plug
Gender Male to Male
Fastening Type Latch Lock
Cable Type Flat, Twin Axial
Usage Internal
Length 3.33' (1.02m)
Color Blue
Shielding Shielded
Wire Gauge 34 AWG
Frequency - Max 56Gbps
Temperature Range - Operating -40°C ~ 125°C
Base Product Number ARC6-16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8544.42.9090
Other Names 612-ARC6-16-40.0-LU-LU-3-1
Standard Package 25
Win Source Part Number 1195406-ARC6-16-40.0-LU-LU-3-1
Ultra Librarian 3D Model Ultra Librarian ARC6-16-40.0-LU-LU-3-1 CAD Model

Description

The ARC6-16-40.0-LU-LU-3-1 is a pluggable cable assembly from Samtec Inc.

  • Connector Type: 32-Position
  • Configuration: Plug to Plug
  • Cable: Shielded, Flat, Twin Axial
  • Application: Internal
  • Maximum Frequency: 56Gbps
  • Package: Bulk
  • Length: 3.33 feet (1.02m)
  • Fastening Type: Latch Lock
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8544.42.9090
