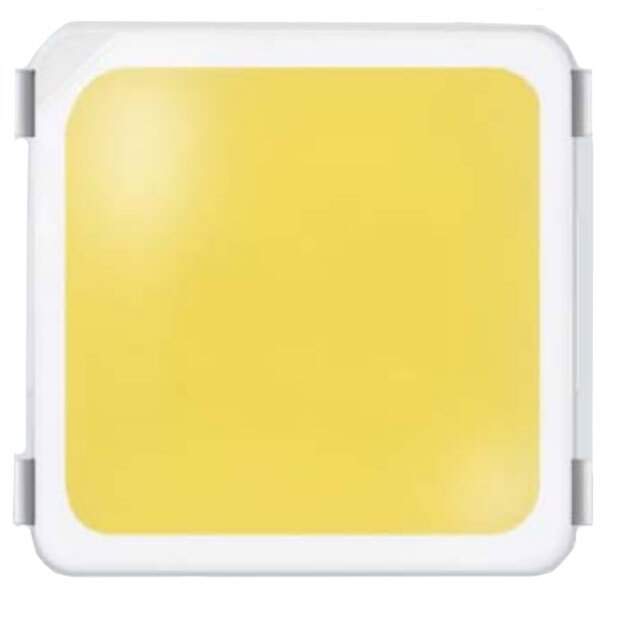

SPMWHT32BMD3YBV0S0 Real Image
Same model may have multiple batches, images only for reference.

SPMWHT32BMD3YBV0S0

Part No SPMWHT32BMD3YBV0S0
Manufacturer Samsung
Catalog LED Lighting - White
Description LED / LED Lighting series White, Warm 3000K 5.9V 65mA 115° 1212 (3030 Metric)
Datasheet
SPMWHT32BMD3YBV0S0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LM302C
Product Status Not For New Designs
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 68lm (62lm ~ 74lm)
Current - Test 65mA
Voltage - Forward (Vf) (Typ) 5.9V
Lumens/Watt @ Current - Test 177 lm/W
CRI (Color Rendering Index) 70
Current - Max 150mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package 3030
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.033" (0.85mm)
Thermal Resistance of Package 8°C/W
Base Product Number SPMWHT32
Other Names SPMWHT32BMD3YBV0S0,1510-2401-2,1510-2401-1,1510-2401-6
Standard Package 4,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238628-SPMWHT32BMD3YBV0S0
Ultra Librarian 3D Model Ultra Librarian SPMWHT32BMD3YBV0S0 CAD Model

Description

The Samsung LM302C is a white, warm LED lighting component that is perfect for optoelectronics applications.

  • Standard Package: 4,000
  • Viewing Angle: 115 degrees
  • Voltage-Forward: 5.9V
  • CCT: 3000K
  • Thermal Resistance: 8 degrees Celsius per watt
  • Current Maximum: 150mA
  • Current Test: 65mA
  • Flux @ 25 degrees Celsius: 68lm (62lm ~ 74lm) @ 65mA
  • Lumens per Watt: 177 lm/W @ 65mA
  • CRI: 70
  • Package: 1212 (3030 Metric) that measures 0.118 inches in length and 0.118 inches in width.
