Same model may have multiple batches, images only for reference.

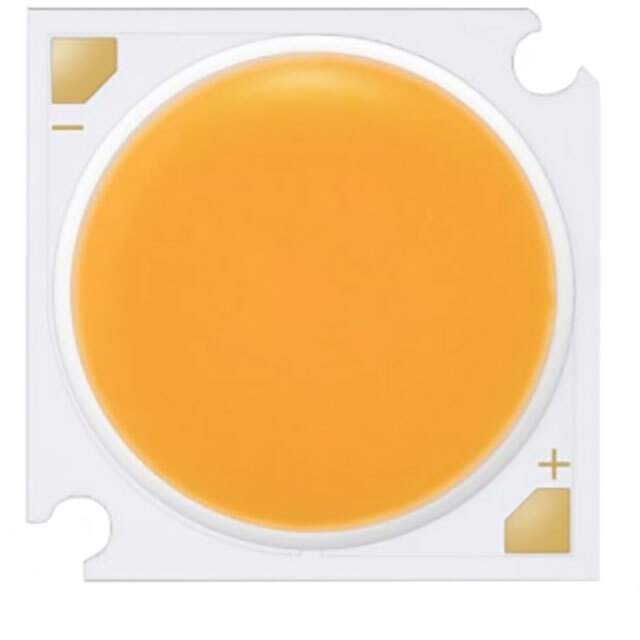

SPHWHAHDNK27YZV3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNK27YZV3DB

Part No SPHWHAHDNK27YZV3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC040D 3000K 90CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
SPHWHAHDNK27YZV3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 4923lm (Typ)
Current - Test 1.08A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 134 lm/W
Current - Max 2.16A
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 28.00mm L x 28.00mm W
Height 1.50mm
Light Emitting Surface (LES) 22.00mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNK27
Other Names 1510-SPHWHAHDNK27YZV3DB
Standard Package 160
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241516-SPHWHAHDNK27YZV3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNK27YZV3DB CAD Model

Description

This COB D Gen2 series module from Samsung Semiconductor is a high-quality LED lighting solution.

  • Shape: Square
  • Lens Type: Flat
  • Viewing Angle: 115 degrees
  • Color: White and Warm
  • CCT: 3000K 3-Step MacAdam Ellipse
  • Maximum Current: 2.16A
  • Voltage Forward (Vf): 34V (Typ)
  • Light Emitting Surface (LES): 22.00mm diameter
  • Dimension: 28.00mm long and 28.00mm wide
  • Height: 1.50mm
  • Luminous Flux: 4923lm (Typ) @ current/temperature
  • Standard Package: 160
