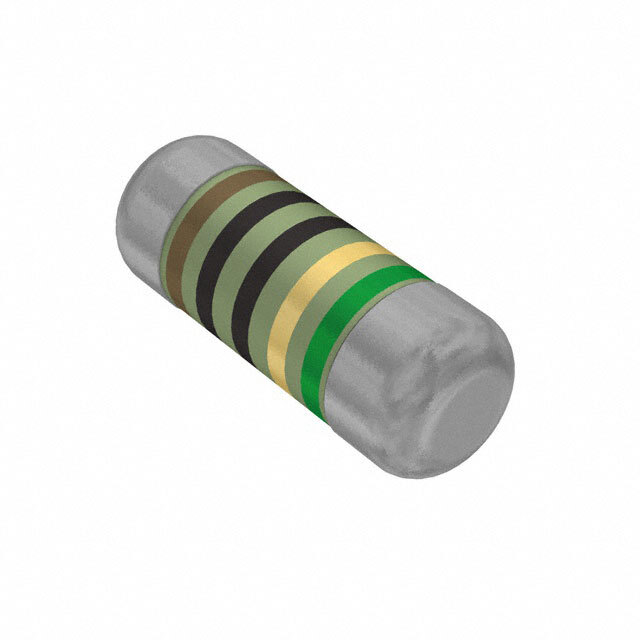

Same model may have multiple batches, images only for reference.
SMM02040D1009DB300 Draloric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMM02040D1009DB300

Part No SMM02040D1009DB300
Manufacturer Draloric
Catalog Chip Resistor - Surface Mount
Description RES 10 OHM 0.5% 1/4W MELF 0204
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Resistance 10 Ohms
Tolerance ±0.5%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 125°C
Package / Case MELF, 0204
Ratings AEC-Q200
Supplier Device Package Mini MELF
Size / Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
Ultra Librarian 3D Model Ultra Librarian SMM02040D1009DB300 CAD Model
