Same model may have multiple batches, images only for reference.

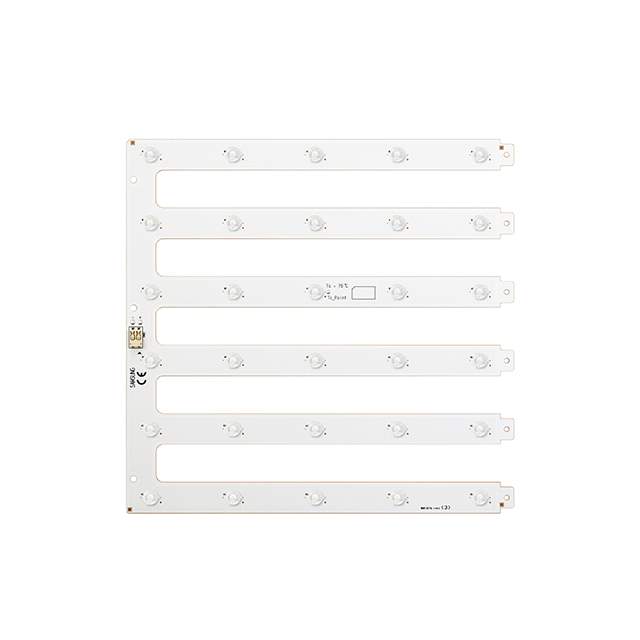

SI-B8T114250WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8T114250WW

Part No SI-B8T114250WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MODULE LAM-SQ30 4000K RECT / LED Lighting COBs Engines Modules LED Module series White, Neutral Rectangle
Datasheet
SI-B8T114250WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LAM-SQ30
Package Tray
Product Status Obsolete
Type LED Module
Color White, Neutral
CCT (K) 4000K
Configuration Rectangle
Luminous Flux @ Current/Temperature 1515lm (1364lm ~ 1683lm)
Current - Test 350mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 30.2V
Lumens/Watt @ Current - Test 143 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 145°
Features With Connector
Dimension 259.00mm L x 250.00mm W
Height 6.60mm
Lens Type Domed
Base Product Number SI-B8
Other Names 1510-1642
Standard Package 60
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241154-SI-B8T114250WW
Ultra Librarian 3D Model Ultra Librarian SI-B8T114250WW CAD Model

Description

The LAM-SQ30 series LED module is a rectangular configuration that features a viewing angle of 145 degrees and a voltage-forward of 30.2V.

  • Color: White or Neutral
  • CCT: 4000K
  • CRI: 80
  • Luminous Flux: 1515lm @ a current of 350mA and temperature of 50 degrees Celsius
  • Connector Type: Connector
  • Package: Tray with a standard package of 60
  • Dimension: 259.00mm L x 250.00mm W
  • Height: 6.60mm
  • Application: LED lighting - COBs, engines, modules, and strips applications
