Same model may have multiple batches, images only for reference.

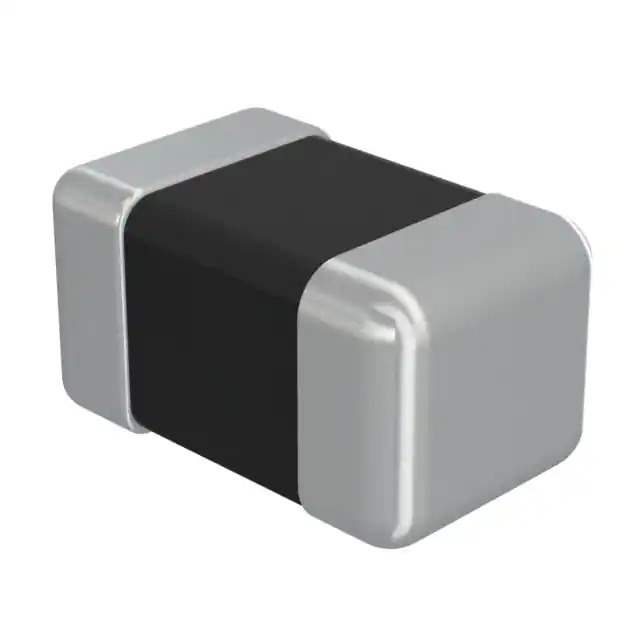

CIM21J301NE Real Image
Same model may have multiple batches, images only for reference.

CIM21J301NE

Part No CIM21J301NE
Manufacturer Samsung
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 300 OHM 0805 1LN / 300 Ohms @ 100 MHz 1 Ferrite Bead 0805 (2012 Metric) 500mA 200mOhm
Datasheet
CIM21J301NE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Samsung
Series CIM21
Package Tape & Reel
Product Status Obsolete
Number of Lines 1
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 200mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.043" (1.09mm)
Size / Dimension 0.079" L x 0.049" W (2.01mm x 1.24mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 915353-CIM21J301NE
Ultra Librarian 3D Model Ultra Librarian CIM21J301NE CAD Model

Description

The Samsung CIM21J301NE is a ferrite bead and chip filter designed for power line filtering applications.

  • Maximum Current Rating: 500mA
  • DC Resistance: 200mOhm
  • Impedance: 300 Ohms @ a frequency of 100 MHz
  • Mounting: surface mount
  • Package Size: 0805 (2012 Metric)
  • Operating Temperature: -55°C to 125°C
  • Series: CIM21
  • Package: tape and reel package
