Same model may have multiple batches, images only for reference.

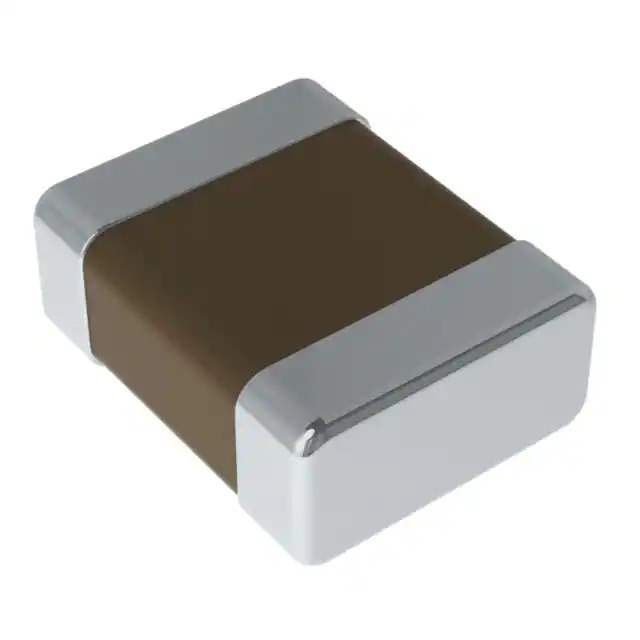

CIGW252010GLR47MNE Real Image
Same model may have multiple batches, images only for reference.

CIGW252010GLR47MNE

Part No CIGW252010GLR47MNE
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 470NH 5.9A 20MOHM SMD
Datasheet
CIGW252010GLR47MNE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Samsung
Series CIGW
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 5.9 A
Current - Saturation (Isat) 5.5A
Shielding Unshielded
DC Resistance (DCR) 20mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 845013-CIGW252010GLR47MNE
Ultra Librarian 3D Model Ultra Librarian CIGW252010GLR47MNE CAD Model

Description

The Samsung CIGW252010GLR47MNE is a fixed inductor from the CIGW series.

  • Series: CIGW
  • Core Type: Drum Core, Wirewound
  • Inductance: 470 nH
  • Inductance Tolerance: ±20%
  • DC Resistance (DCR): 20mOhm max
  • Current Rating: 5.9A
  • Saturation Current (Isat): 5.5A
  • Height: 0.039" (1.00mm)
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Package: 1008 (2520 Metric)
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Manufacturer: Samsung
