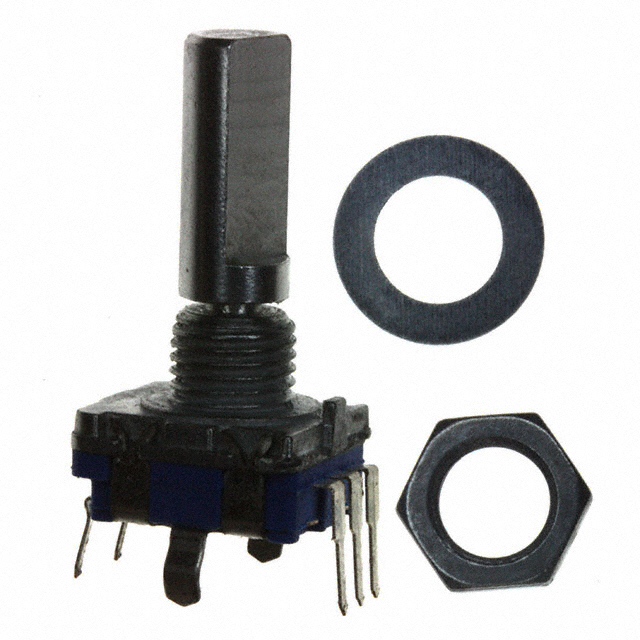

ACZ11BR1E-15FA1-12C

Part No ACZ11BR1E-15FA1-12C
Manufacturer Same Sky
Catalog Encoders
Description ENC INCRE QUAD RGHT ANGLE PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Programmable Not Verified
Encoder Type Incremental
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Voltage - Supply 5V
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Right Angle
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1547956-ACZ11BR1E-15FA1-12C
Ultra Librarian 3D Model Ultra Librarian ACZ11BR1E-15FA1-12C CAD Model
