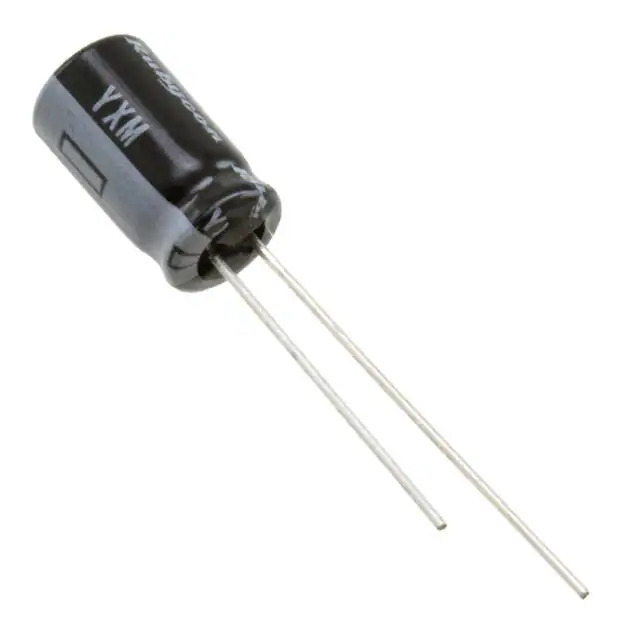

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Bulk
Product Status Obsolete
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 168 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357715-63YXM47MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 63YXM47MEFC8X11.5 CAD Model

Description

The Rubycon YXM series aluminum electrolytic capacitor is a reliable component for general-purpose applications.

  • Capacitance: 47 μF
  • Voltage Rating: 63 V
  • Temperature Range: -40°C to 105°C
  • Package: radial, can
  • Diameter: 8.00mm
  • Height: 13.00mm
  • Mounting: through-hole
  • Lifetime: 10000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current: 168 mA @ 120 Hz and 240 mA @ 100 kHz
  • Product Status: obsolete
  • REACH Compliant: Unaffected
