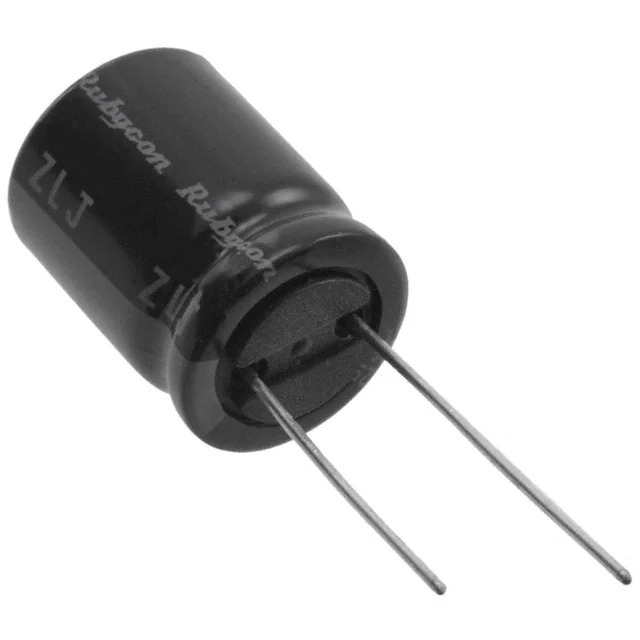

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Tape & Box (TB)
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.147 A @ 120 Hz
Ripple Current @ High Frequency 2.73 A @ 100 kHz
Impedance 32 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357900-63YXJ1000MGC16X25
Ultra Librarian 3D Model Ultra Librarian 63YXJ1000MGC16X25 CAD Model

Description

The Rubycon 1357900-63YXJ1000MGC16X25 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications. With a capacitance of 1000 µF and a voltage rating of 63 V, this capacitor is suitable for a wide range of electronic devices.

  • Capacitance: 1000 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Lifetime: 10000 hours @ 105°C
  • Package: Radial, Can
  • Size: 0.630" diameter and a height of 1.063"
  • Lead Spacing: 0.295"
  • Mounting Type: Through-Hole
  • REACH: Unaffected
  • ECCN: EAR99
