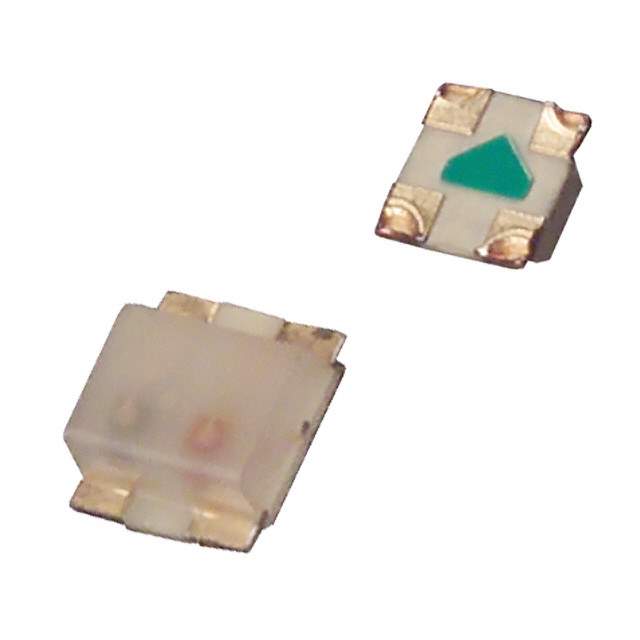

SML522BUWT86 Real Image1 SML522BUWT86 Real Image2
Same model may have multiple batches, images only for reference.
SML522BUWT86 Real Image1 SML522BUWT86 Real Image2
SML522BUWT86 Real Image1 SML522BUWT86 Real Image2
Same model may have multiple batches, images only for reference.

SML522BUWT86

Part No SML522BUWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED BLUE/RED DIFFUSED 0605 SMD
Datasheet
SML522BUWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Color Blue, Red
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 22mcd Blue, 21mcd Red
Lens Style/Size Rectangle with Flat Top, 1.10mm x 1.30mm
Forward Voltage 2.9V Blue, 1.9V Red
Current - Test 5mA Blue, 5mA Red
Mounting SMD (SMT)
Wavelength - Dominant 470nm Blue, 624nm Red
Dimension 1.50mm L x 1.30mm W
Height (Max) 0.70mm
Win Source Part Number 116514-SML522BUWT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML522BUWT86 CAD Model

Description

It is a SMD (SMT) mounting configuration with a diffused lens transparency and a rectangular shape with a flat top.

  • Forward Voltage: 2.9V for blue and 1.9V for red
  • Viewing Angle: Not specified
  • Peak Wavelength: Not specified
  • Millicandela Rating: 22mcd for blue and 21mcd for red
  • Dimension: 1.50mm L x 1.30mm W
  • Height (Max): 0.70mm
