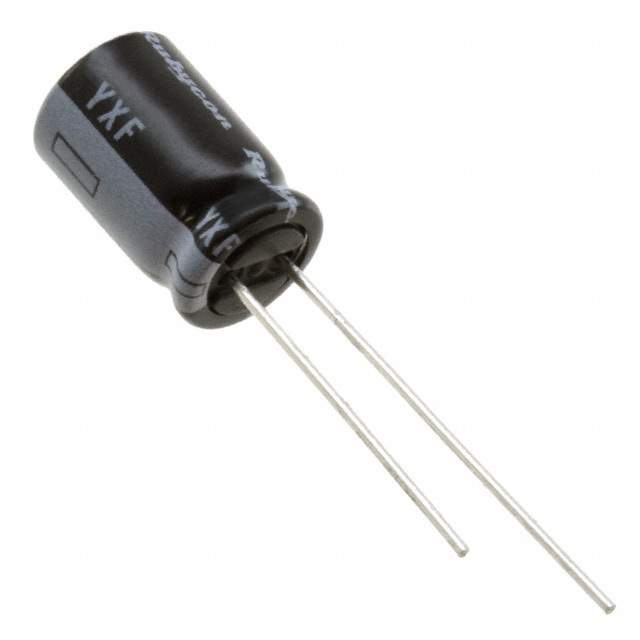

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 147 mA @ 120 Hz
Ripple Current @ High Frequency 210 mA @ 100 kHz
Impedance 630 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 63YXF47MEFC8X11.5-ND,1189-2353
Standard Package 2,000
Win Source Part Number 1120404-63YXF47MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 63YXF47MEFC8X11.5 CAD Model

Description

The Rubycon 1120404-63YXF47MEFC8X11.5 is an aluminum electrolytic capacitor that belongs to the YXF series.

  • Capacitance: 47 µF
  • Voltage Rating: 63 V
  • Mounting: Through-Hole
  • Lead Spacing: 0.138" (3.50mm)
  • Height: 0.512" (13.00mm)
  • Tolerance: ±20%
  • Impedance: 630 mOhms
  • ESR: Not specified
  • Polarization: Polar
  • Package/Case: Radial, Can
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 7000 Hrs @ 105°C
