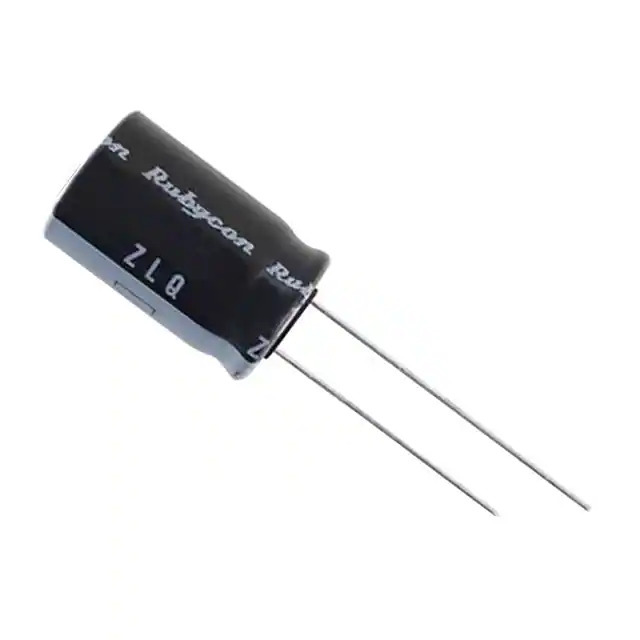

6.3ZLQ1500MEFC8X16 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLQ
Package Bulk
Product Status Active
Capacitance 1500 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 834 mA @ 120 Hz
Ripple Current @ High Frequency 1.39 A @ 100 kHz
Impedance 38 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358122-6.3ZLQ1500MEFC8X16
Ultra Librarian 3D Model Ultra Librarian 6.3ZLQ1500MEFC8X16 CAD Model

Description

The Rubycon ZLQ series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Manufacturer: Rubycon
  • Capacitance: 1500 μF
  • Voltage Rating: 6.3 V
  • Tolerance: ±20%
  • Ripple Current Rating: 834 mA @ 120 Hz, 1.39 A @ 100 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.689" (17.50mm) Max
  • Mounting Type: Through Hole
  • Lifetime: 4000 hours @ 105°C
  • Polarization: Polarized
  • Impedance: 38 mOhms
  • Series: ZLQ
  • Status: Active
