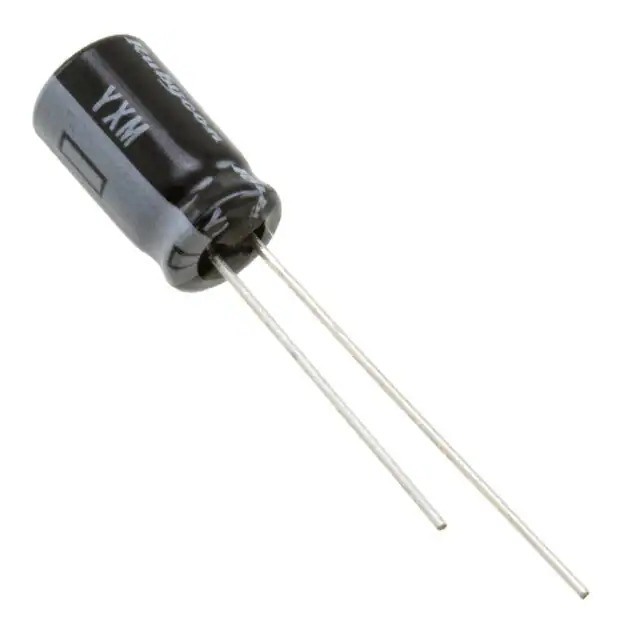

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 37.8 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357785-50YXM10MEFCTA5X11
Ultra Librarian 3D Model Ultra Librarian 50YXM10MEFCTA5X11 CAD Model

Description

The 1357785-50YXM10MEFCTA5X11 is a through-hole aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 10 μF
  • Tolerance: ±20%
  • Voltage Rating: 50 V
  • Ripple Current (Low Frequency): 37.8 mA @ 120 Hz
  • Ripple Current (High Frequency): 90 mA @ 100 kHz
  • ESR: Not specified
  • Lifetime: 10,000 hours @ 105°C
  • Package: Radial, can
  • Diameter: 5.00 mm
  • Height: 12.50 mm
  • Lead Spacing: 5.00 mm
  • REACH: Unaffected
  • Polarization: Polarized
  • Mounting Type: Through-hole
