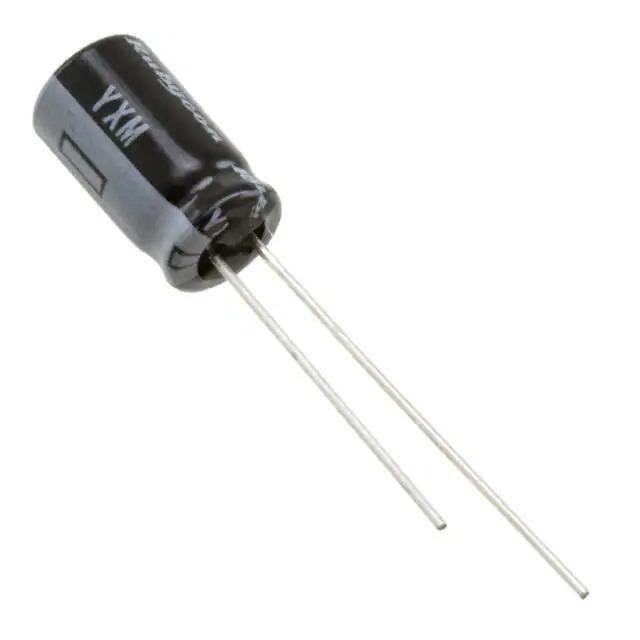

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Tape & Box (TB)
Product Status Obsolete
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 37.8 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357790-50YXM10MEFCT15X11
Ultra Librarian 3D Model Ultra Librarian 50YXM10MEFCT15X11 CAD Model

Description

The 50YXM10MEFCT15X11 is an aluminum electrolytic capacitor from Rubycon's YXM series.

  • Series: YXM
  • Capacitance: 10μF
  • Voltage - Rated: 50V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 37.8mA @ 120Hz
  • Ripple Current @ High Frequency: 90mA @ 100kHz
  • Application: General Purpose
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Size / Dimension: 0.197" (5.00mm)
  • Height - Seated (Max): 0.492" (12.50mm)
  • Lifetime @ Temp.: 10000 Hours @ 105°C
  • RoHS: Yes
  • REACH: Unaffected
  • ECCN: EAR99
