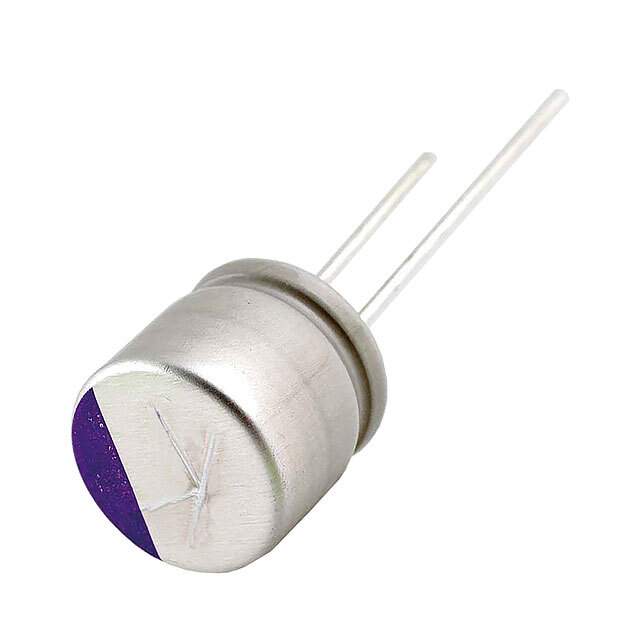

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Rubycon
Packaging Bulk
Type Hybrid
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 80 mA @ 120 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 50PZF100M100010X9-ND,50PZF100M100010X9
Standard Package 1,000
Win Source Part Number 1328571-50PZF100M10X9
Ultra Librarian 3D Model Ultra Librarian 50PZF100M10X9 CAD Model

Description

The Rubycon 1328571-50PZF100M10X9 is an aluminum-polymer capacitor that is designed for use in automotive applications.

  • Capacitance: 100µF
  • Voltage Rating: 50V
  • Type: Hybrid
  • Diameter: 0.394 inches
  • Height: 0.433 inches
  • Mounting Type: Through Hole
  • Tolerance: ±20%
  • ESR: 28mOhm
  • Lifetime: 4000 hours @ 125°C
  • Application: Circuits that require high capacitance and voltage ratings
