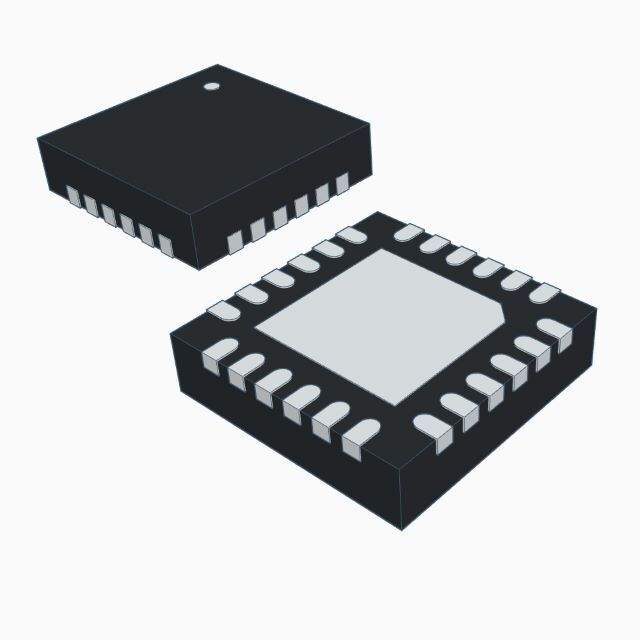

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Frequency 100MHz ~ 1GHz
P1dB 33dBm
Gain 22dB
Noise Figure 6.8dB
RF Type CDMA, LTE, W-CDMA
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 320mA ~ 480mA
Test Frequency 700MHz
Grade -
Mounting Type Surface Mount
Package / Case 24-VQFN Exposed Pad
Supplier Device Package 24-VQFN (4x4)
Ultra Librarian 3D Model Ultra Librarian BT33L CAD Model

Description

The BT33L is a high dynamic range power amplifier housed in RoHS2 compliant 24L, 4x4mm QFN package. The BT33L uses a high reliability InGaP/GaAs HBT process technology. The BT33L is designed for use where high linearity and gain is required. The BT33L is able to deliver over 22 dBm output power from 200 to 1000MHz while maintaining superior ACLR performance with a few external matching components. All devices are 100% RF/DC screened.
