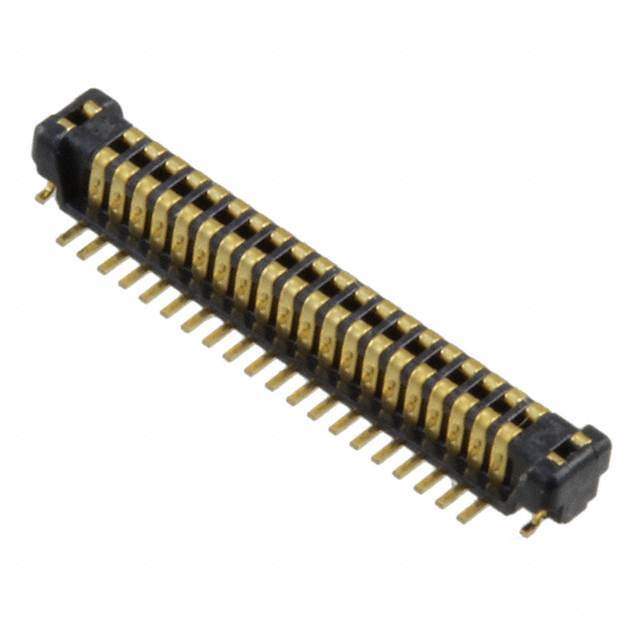

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Win Source Part Number 1021106-AXT440124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXT440124 CAD Model

Description

Panasonic Electric Works Header, Center Strip Contacts is a connector type with 40 positions and 2 rows.

  • Connector Type: Header, Center Strip Contacts
  • Positions: 40
  • Rows: 2
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Contact Finish: Gold
  • Mated Stacking Heights: 1.5mm and 2.5mm
  • Height Above Board: 0.049" (1.25mm)
  • Mounting: SMD (SMT)
  • Status: Active
  • Popularity: Medium
  • Supply and Demand: Sufficient
  • Quantity Per Package: 1k pcs
