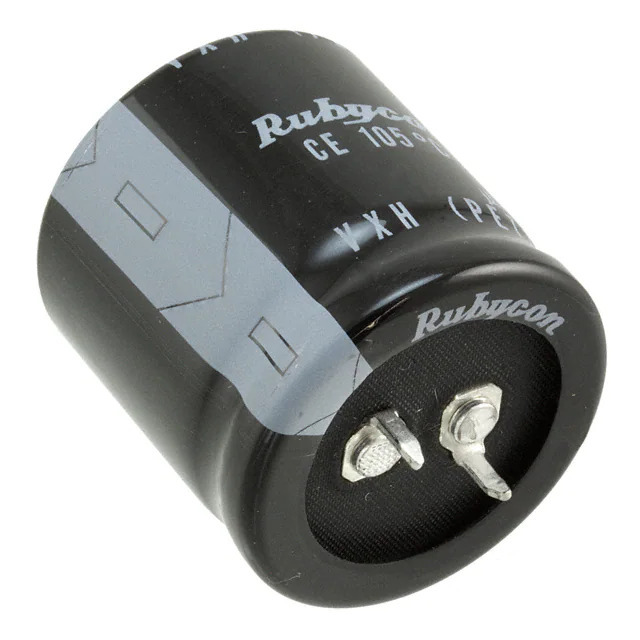

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series VXH
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.36 A @ 120 Hz
Ripple Current @ High Frequency 1.904 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360704-450VXH220MEFCSN30X30
Ultra Librarian 3D Model Ultra Librarian 450VXH220MEFCSN30X30 CAD Model

Description

The Rubycon VXH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Series: VXH
  • Capacitance: 220 μF
  • Voltage Rating: 450 V
  • Package: Radial, Can - Snap-In
  • Tolerance: ±20%
  • Operating Temperature: -25°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current (Low Frequency): 1.36 A @ 120 Hz
  • Ripple Current (High Frequency): 1.904 A @ 10 kHz
  • Polarized: Yes
  • Lead Spacing: 10.00mm
