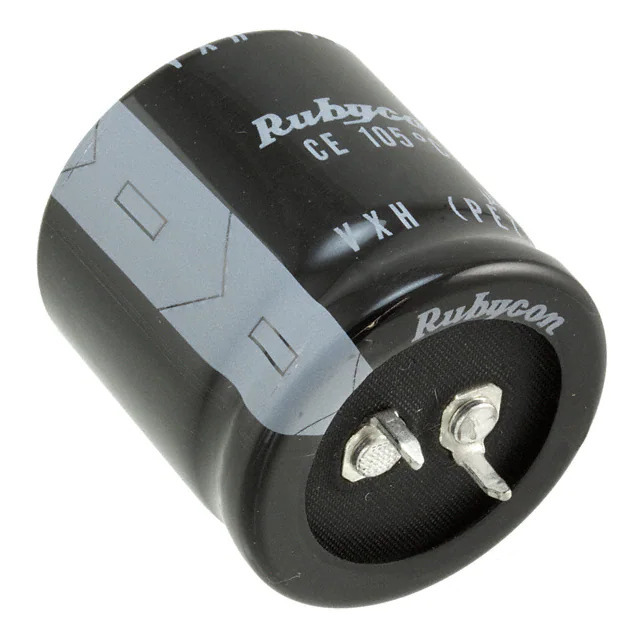

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series VXH
Package Bulk
Product Status Active
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 960 mA @ 120 Hz
Ripple Current @ High Frequency 1.344 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360806-450VXH120MEFCSN25X25
Ultra Librarian 3D Model Ultra Librarian 450VXH120MEFCSN25X25 CAD Model

Description

The Rubycon 450VXH120MEFCSN25X25 Aluminum Electrolytic Capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 120µF
  • Voltage Rating: 450V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 960mA @ 120Hz
  • Ripple Current (High Frequency): 1.344A @ 10kHz
  • Package: Radial, can - snap-in
  • Lifetime: 5000 hours @ 105°C
  • REACH: Unaffected
