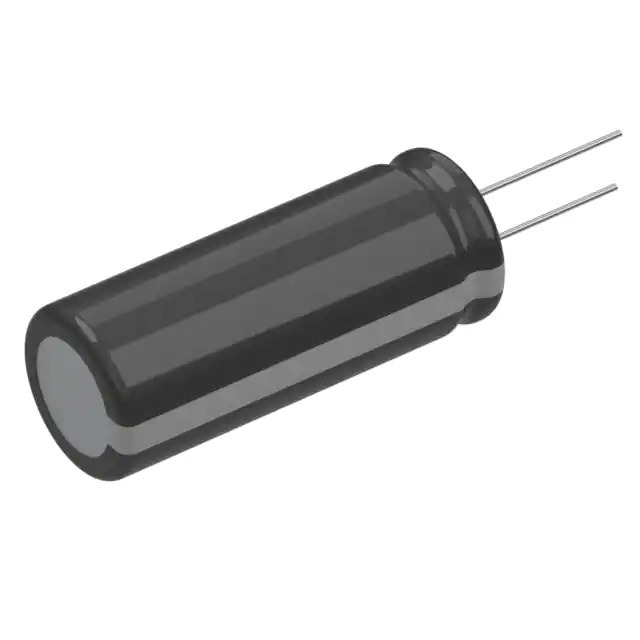

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TXW
Package Bulk
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 950 mA @ 120 Hz
Ripple Current @ High Frequency 1.42 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.870" (47.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357879-450TXW150MEFR18X45
Ultra Librarian 3D Model Ultra Librarian 450TXW150MEFR18X45 CAD Model

Description

The Rubycon TXW series aluminum electrolytic capacitor is a reliable and high-performance component suitable for a wide range of electronic applications.

  • Capacitance: 150 μF
  • Voltage Rating: 450 V
  • Capacitance Tolerance: ±20%
  • Package: Radial, can
  • Mounting Type: Through-hole
  • Diameter: 0.709 inches (18.00mm)
  • Height: 1.870 inches (47.50mm)
  • Lifetime: 12,000 hours @ 105°C
  • Ripple Current (Low Frequency): 950 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.42 A @ 100 kHz
  • Polarization: Polarized
  • Manufacturer: Rubycon
