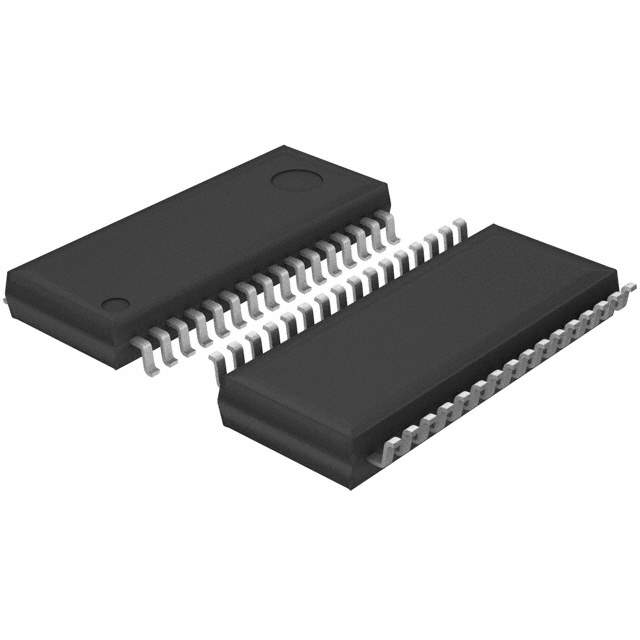

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Display Type LCD
Configuration 80 Segment
Operating Supply Current 12.5μA
Supply Voltage - Operating 2.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 32-SSOP
Win Source Part Number 135634-BU9796FS-E2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BU9796FS-E2 CAD Model

Description

Overview of BU9796FS-E2

The BU9796FS-E2 is an advanced LCD driver IC designed to offer exceptional performance and reliability in multi-segment display applications. Ideal for use in automotive dashboards, consumer electronics, and industrial devices, this component stands out for its robust capabilities and efficiency.

Features and Benefits

  • High Contrast Ratio: Ensures clear and readable displays in various lighting conditions.
  • Low Power Consumption: Enhances energy efficiency, ideal for battery-powered devices.
  • Compact Design: Facilitates integration into space-constrained projects.
  • Wide Operating Temperature Range: Suited for diverse environmental conditions.

Applications

  • Automotive Display Systems
  • Portable Consumer Electronics
  • Industrial Control Panels

Additional Details

The BU9796FS-E2 supports a wide array of LCD segment drivers and is engineered to minimize electromagnetic interference (EMI), making it an excellent choice for applications demanding high precision and low noise output.
