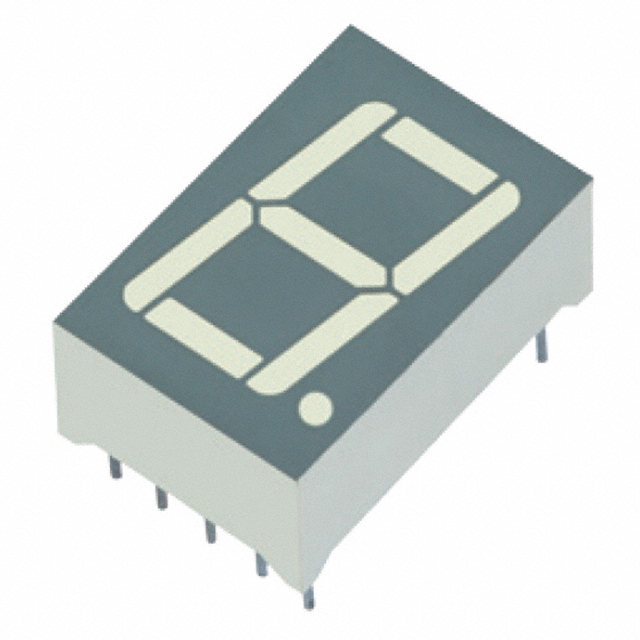

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Characters 1
Size / Dimension 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm)
Digit/Alpha Size 1.00" (25.40mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 3.7V
Current - Test 10mA
Millicandela Rating 70mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 75mW
Case / Package 10-DIP (1.197\
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1572839-XDMDK25A
Ultra Librarian 3D Model Ultra Librarian XDMDK25A CAD Model
